Fuel tanker

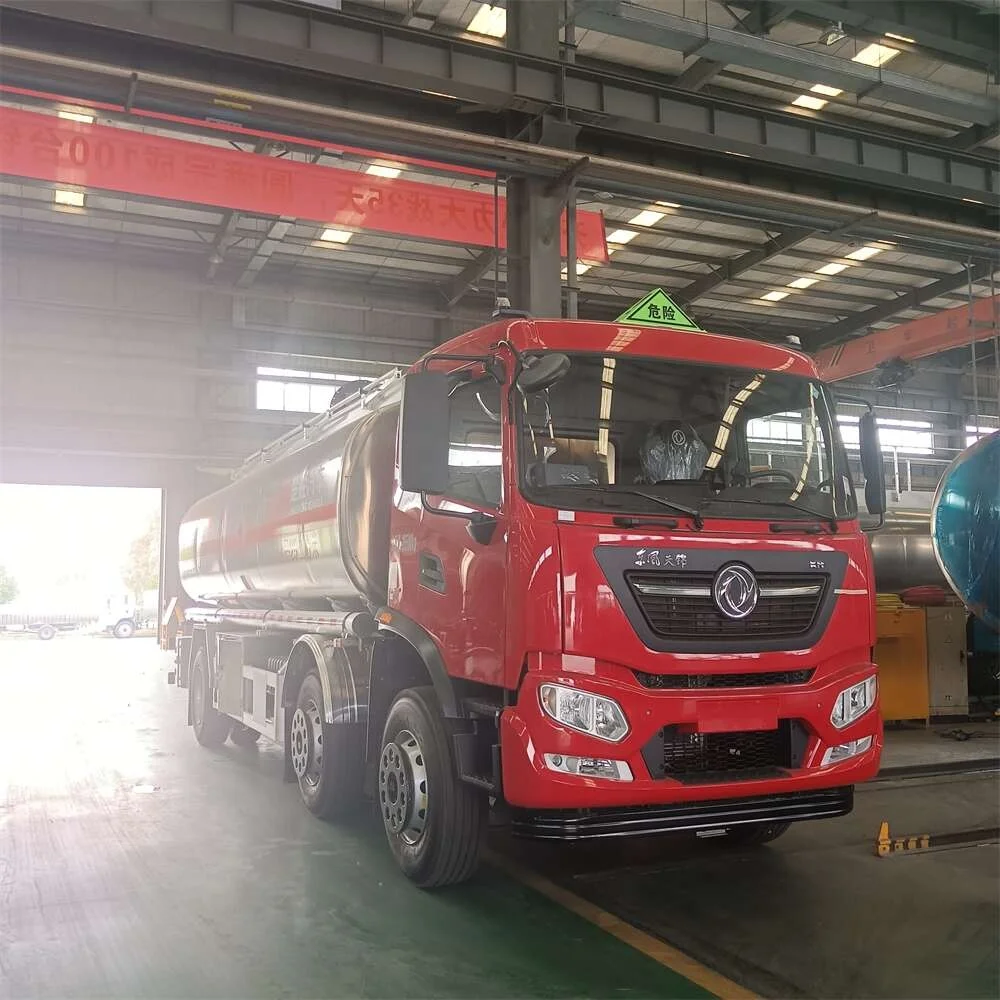

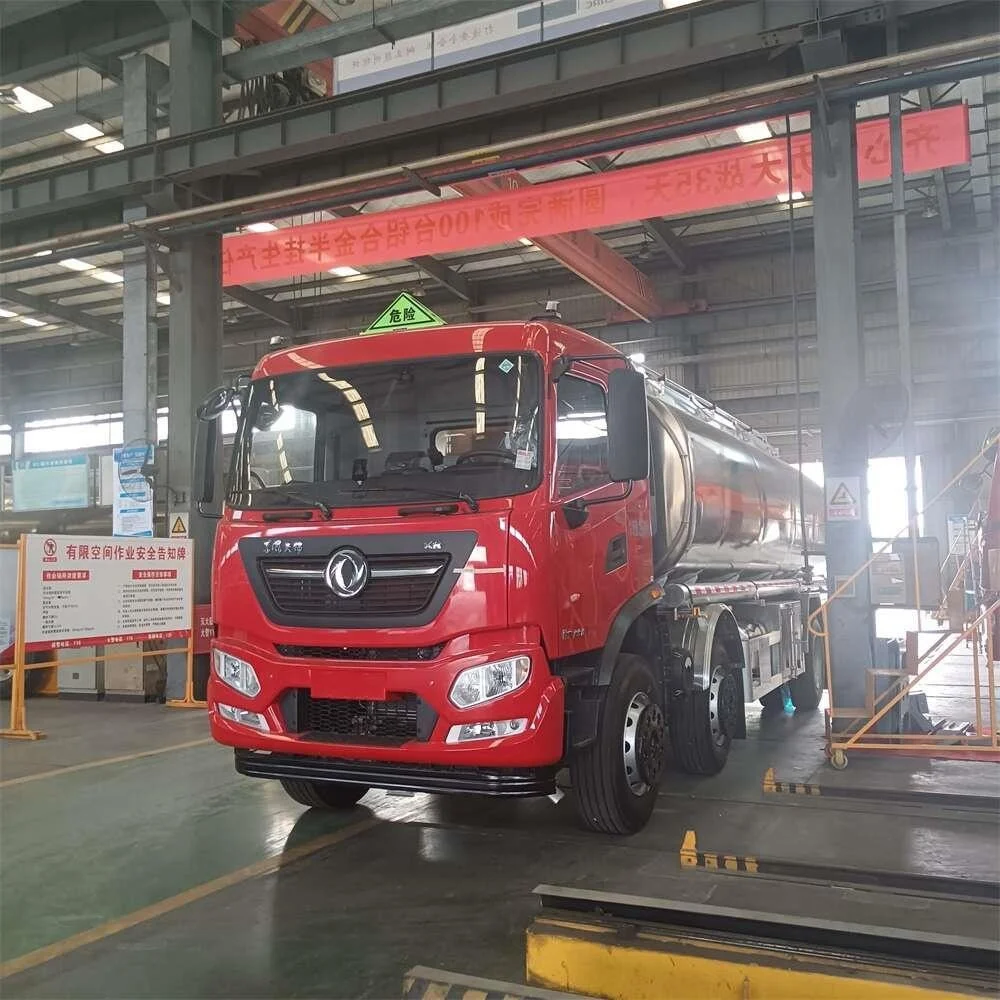

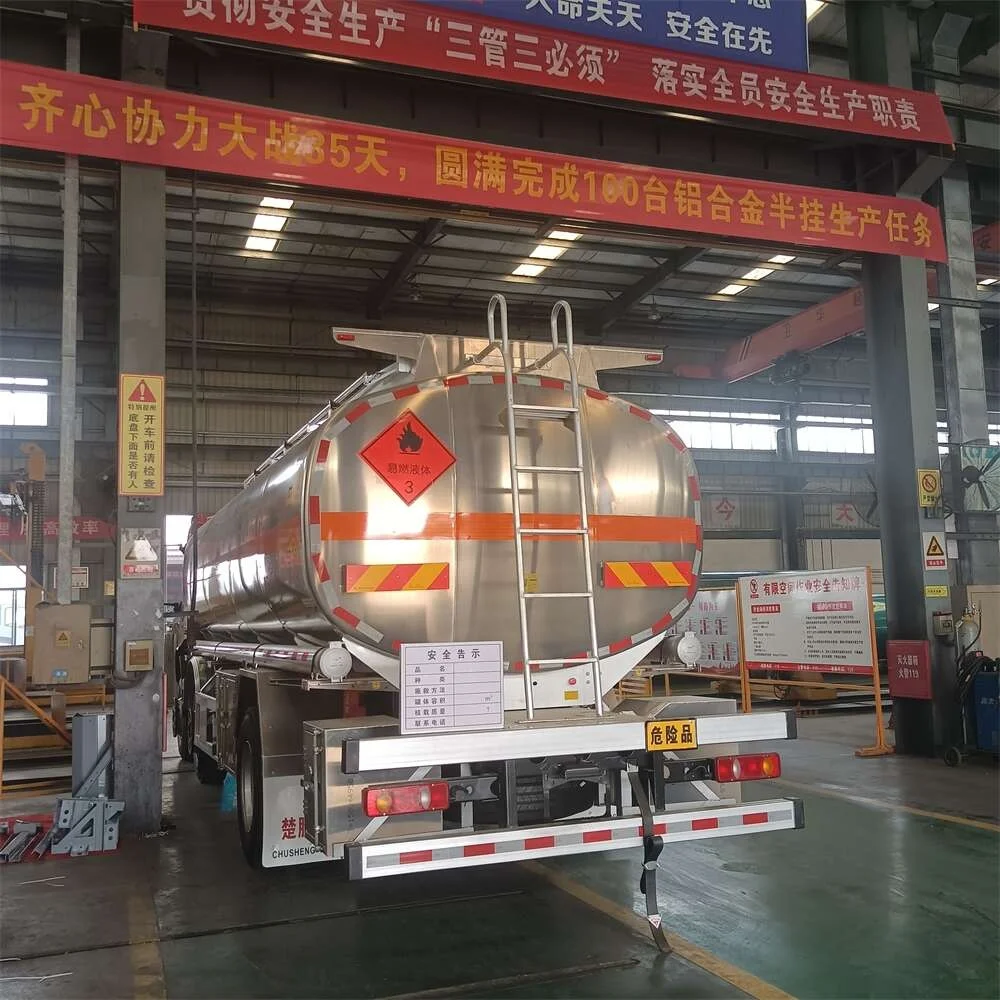

15 Tons Tianjin Small Three Axis Aluminum Alloy Oil Truck

15 Tons Tianjin Small Three Axis Aluminum Alloy Oil Truck

Sales Executive Yanis：
Tel:+8613872882788 E-mail:[email protected]

Introduction

Introduction

15 Tons Tianjin Small Three Axis Aluminum Alloy Oil Truck supplier

Product Overview

Oil tanker truck

After years of accumulation, the company has risen to the forefront in the global special-purpose vehicle manufacturers, and is the leader in the domestic and foreign flammable and explosive liquids, tanker trucks, refuelling trucks, and the company adheres to the corporate philosophy of "professional manufacturing, creating high-quality products, and common development". Strictly in accordance with the national standards of the People's Republic of China, "GB 18564.1-2019 Road Transportation of Liquid Dangerous Goods Tanker Vehicles Part 1: Metal Normally Pressurised Tanks Technical Requirements", "GB 18564.1-2019 Road Transportation of Liquid Dangerous Goods Tanker Vehicles Part 2: Non-metallic Normally Pressurised Tanks Technical Requirements", "GB7258-2017 Motor Vehicle Operational Safety Technical Conditions". Conditions", "GB7258-2017 Motor Vehicle Operation Safety Technical Conditions", "GB7258-2017 Motor Vehicle Operation Safety Technical Conditions", "GB7258-2017 Motor Vehicle Operation Safety Technical Conditions", "GB7258-2017 Motor Vehicle Operation Safety Technical Conditions", "GB7258-2017 Motor Vehicle Operation Safety Technical Conditions", "GB7258-2017 Motor Vehicle Operation Safety Technical Conditions".

The tank inspection report below is from the China National Accreditation Service for Conformity Assessment (CNAS).

15 Tons Tianjin Small Three Axis Aluminum Alloy Oil Truck details

Dedicated to the research and development, production and manufacture of hazardous chemical transport vehicles, storage equipment and components. Relying on domestic and foreign series of special-purpose vehicle chassis, Isuzu Hino Nissan JAC Iveco (Yuejin) Iveco (Hongyan) Northern Heavy Duty Truck China Heavy Duty Truck Foton Shakman Dongfeng FAW Yangman CAMC Jiangling Xugong. Tank part is for different media, cargo type, concentration, density and vehicle acquisition cost, carrying capacity, corrosion margin and other requirements, tank manufacturing materials can be divided into: carbon steel, manganese steel, aluminium alloy, titanium alloy, aluminium, 304 stainless steel, 316 stainless steel, C4 steel, foam insulation and other materials.

Class 3 flammable substances (FL-type vehicles): acetone, adhesives, paints, varnishes, alcohols, spice products, petrol, diesel fuel, aviation fuel, heating oil, paraffin, resins, tar, turpentine, ethanol, benzene, butanol, isopropanol, methanol, octane, etc.

General cargo: well washing fluid, fracturing fluid, water purifying agent, water reducing agent, cleaning agent, asphalt, hydraulic oil, edible oil, wine, milk, various liquid foodstuffs, etc.

Service Hotline: +8613872882788 +8613908665755 mail：[email protected] [email protected]

PRODUCT SPECIFICATIONS

Name of vehicle	Oil tanker truck
Vehicle type	CS5262GYYLD1
Chassis type	DFH1260BX2
Volume	15-30 cubic meters
Total mass	25500Kg
Quality of equipment (Kg)	8605Kg
Vehicle length	10310×2520×3410
Rated load mass (kg)	16765,16700
The engine	B6.2NS6B245,B6.2NS6B260

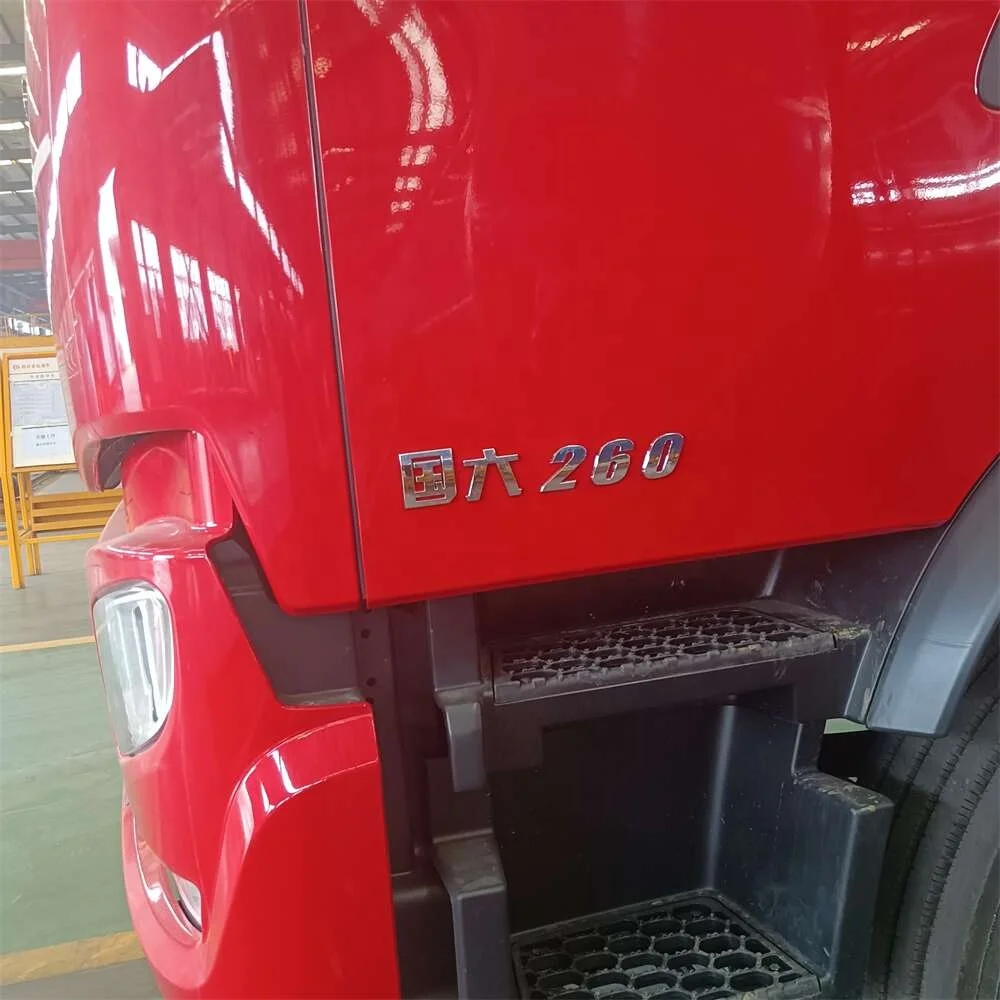

Chassis configuration	D560 Tianjin KR bank half cab, Kang engine 260 HP, 8 speed transmission, with engine brake, speed ratio 4.89, aluminum 280L fuel tank, with air conditioning, electric glass, central control lock, front panel speed limit, travel log, rear axle overhang, hazard warning light. With EBS(Electro-pneumatic Braking system), FCWS (anti-collision warning), LDWS (Lane departure warning), TPMS (front axle single tire pressure monitoring). ESC(Anti-rollover system), ECAS (Cab airbag regulation).

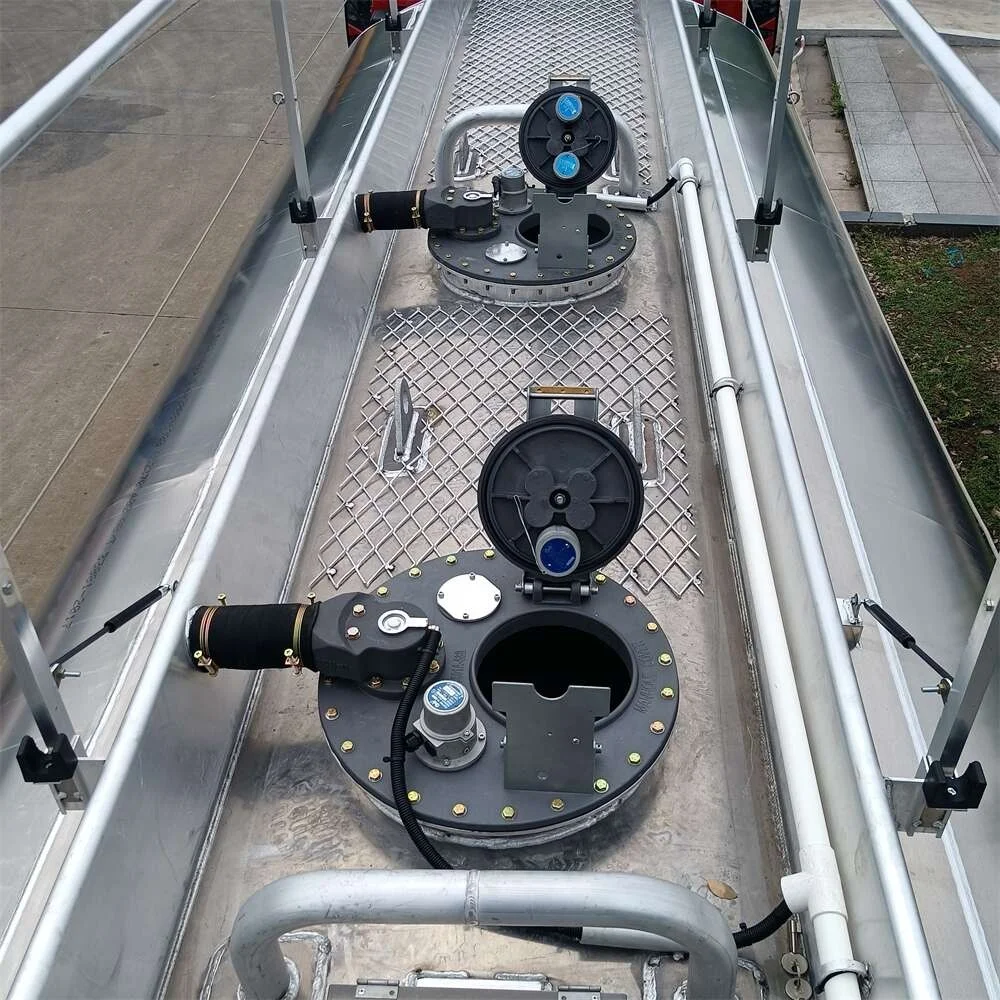

tanker configuration	Carbon steel top loading configuration: effective tank volume :15-30 cubic meters, Q235B plate, 5mm thick cylinder, 5.75mm thick head, 5mm thick bulkhead, single tank with 2 tank ports, a set of European standard system, 1 submarine valve with voice alarm device with 80/60 pump, rear ladder, manual guardrail, toolbox, rear bumper, side guardrail, according to the new standard, Other manufacturers standards, gasoline, diesel and other fuel medium tank inspection report. Aluminum alloy top configuration: effective volume of oil tank :15-30 cubic meters, 5182 aluminum alloy plate, 6 thick tank, 6 thick head, 6 thick bulkhead, single bin, tank top, European standard port, 1 intelligent submarine valve, 1 set of lower charge (discharge valve, oil and steam recovery, anti-overflow probe, anti-static coil), with 80-60 special oil pump (pump can be pumped in and out), rear ladder, Manual guardrail, toolbox, rear bumper, side guardrail are aluminum alloy. The side guardrail is made of aluminum alloy sheet, according to the new standard and other manufacturers' standards, the diesel medium tank inspection report. Optional: Zhengxing large flow fuel refueling machine, 15m thick drum and gun, multi-bin and pipeline system.
