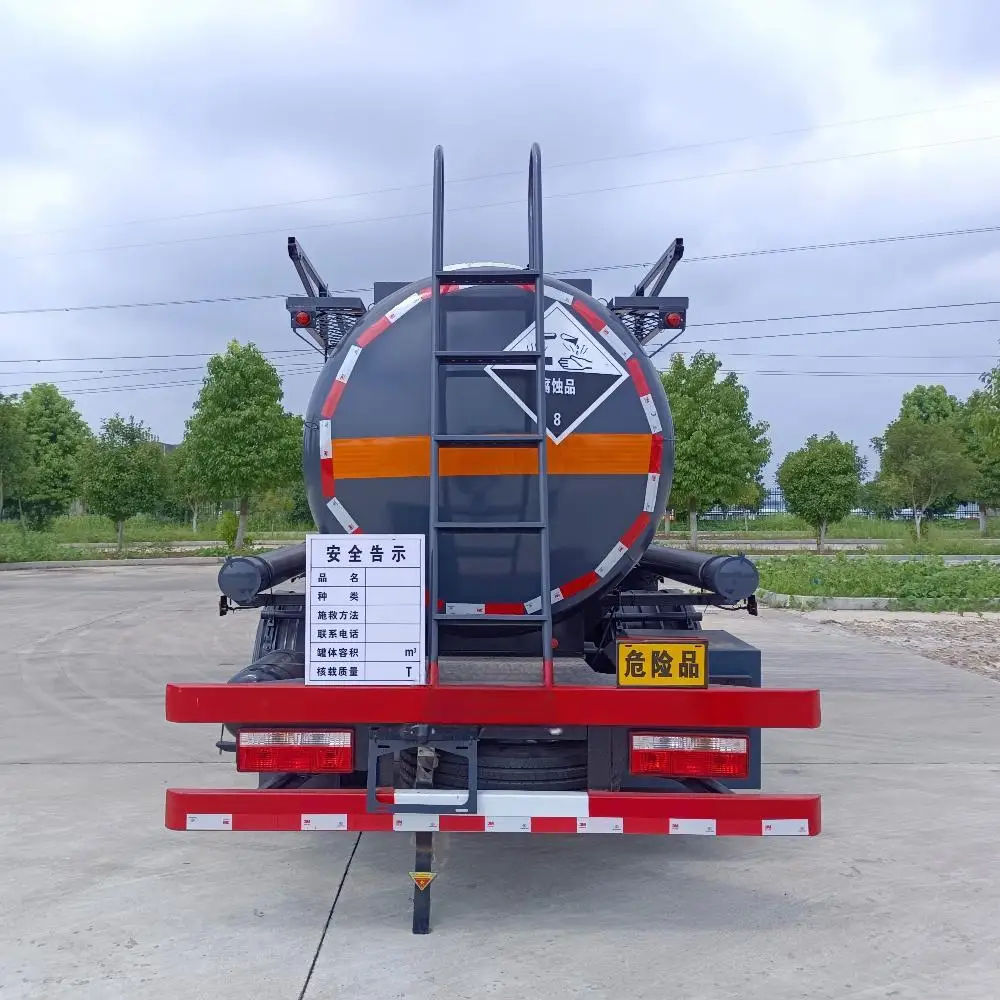

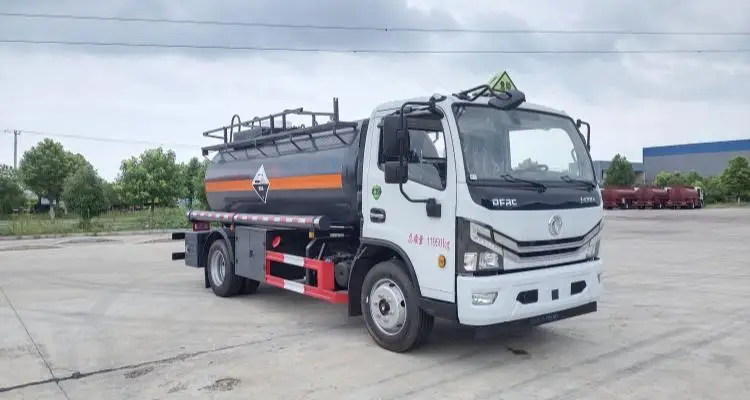

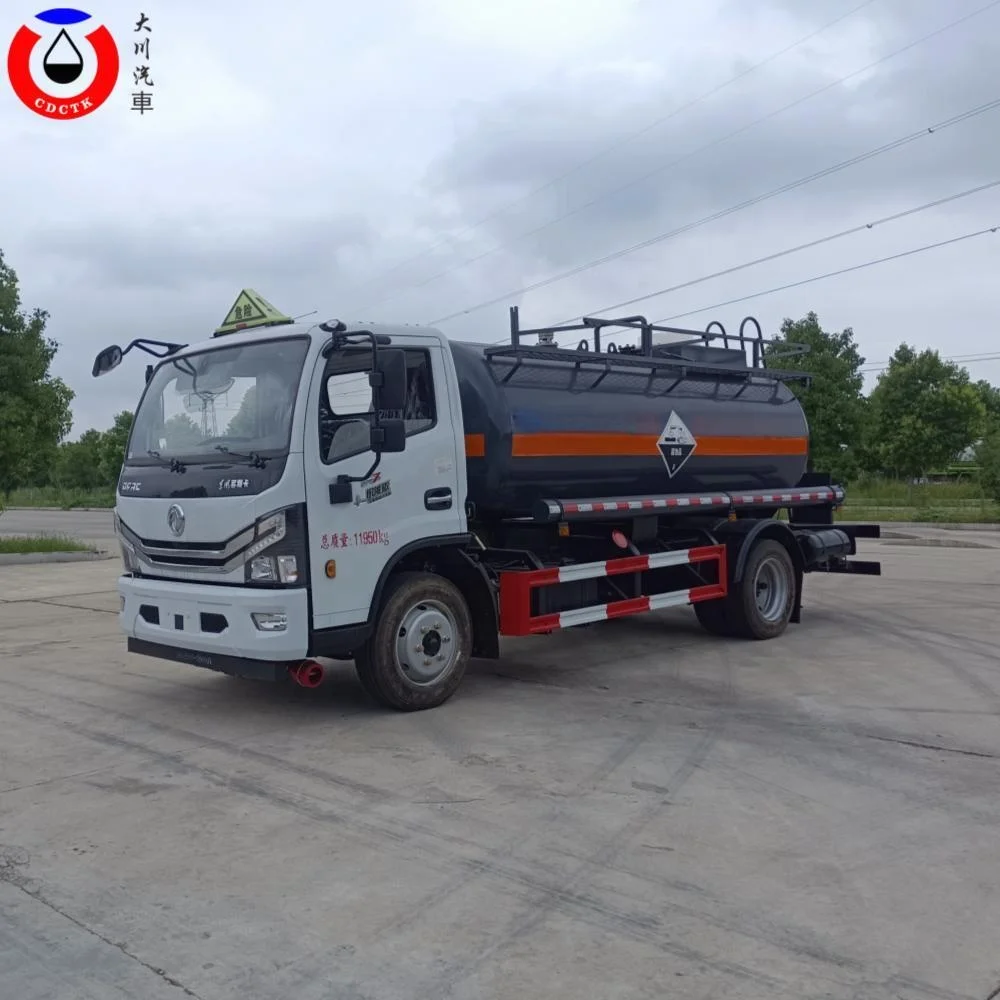

4x2 Dongfeng 5-10CBM 304 316 PE Carbon Steel Chemical Liquid Corrosives Light Tanker Truck

4x2 Dongfeng 5-10CBM 304 316 PE Carbon Steel Chemical Liquid Corrosives Light Tanker Truck

Sales Executive Yanis：
Tel:+8613872882788 E-mail:[email protected]

Introduction

Introduction

4x2 Dongfeng 5-10CBM 304 316 PE Carbon Steel Chemical Liquid Corrosives Light Tanker Truck factory

Product Overview

Chemical tanker truck

Our company, after years of development and growth, has emerged as a leader in the global specialty vehicle manufacturing industry. We are a leading figure in the production of vehicles for transporting flammable and explosive liquids, corrosive liquids, oxidizing liquids, chemical lined plastic tankers, and chemical liquid storage tanks, both domestically and internationally. The company adheres to the business philosophy of “professional manufacturing, creating quality products, and mutual development.” We strictly follow the national standards of the People’s Republic of China, such as “GB 18564.1-2019 Road Transport Liquid Dangerous Goods Tank Vehicles Part 1: Technical Requirements for Metal Atmospheric Tanks,” “GB 18564.1-2019 Road Transport Liquid Dangerous Goods Tank Vehicles Part 2: Technical Requirements for Non-Metal Atmospheric Tanks,” and “GB7258-2017 Motor Vehicle Operating Safety Technical Conditions” in our design and production. We also meet the requirements of “Operational Truck Safety Technical Conditions (JT/T1178.1-2018)” and are listed in the road transport vehicle standard models. The tank inspection report below is from the China National Accreditation Service for Conformity Assessment (CNAS).

4x2 Dongfeng 5-10CBM 304 316 PE Carbon Steel Chemical Liquid Corrosives Light Tanker Truck manufacture

Main Business We are dedicated to the research, development, production, and manufacturing of hazardous chemical transport vehicles, storage equipment, and parts. Relying on a series of domestic and international specialty vehicle chassis, the tank body is tailored to different media, chemical properties of goods, types, concentrations, environmental temperatures, vehicle purchase costs, load capacity, and corrosion allowance requirements. The materials used for manufacturing the tank body include carbon steel, manganese steel, aluminum alloy, titanium alloy, aluminum, 304 stainless steel, 316 stainless steel, C4 steel, steel lined with plastic (polyethylene) (polypropylene) (polytetrafluoroethylene), steel lined with rubber, plastic, ceramic, fiberglass, carbon fiber, foam insulation, and more.

Class 8 Corrosive Items (AT-type vehicles): Hypochlorite solutions, hydrochloric acid, sulfuric acid, sodium hydroxide, potassium hydroxide, sodium hypochlorite, liquid alkali, ammonia water, hydrochloric acid, caustic soda, nitric acid, phosphoric acid, boric acid, aluminum chloride solution, hydrofluoric acid, formaldehyde, glacial acetic acid, acetic acid, acrylic acid, fluoroboric acid, propionic acid, hydrogen peroxide, ferric chloride solution, dichloromethane, fluorosilicic acid, trichloroacetic acid, hydriodic acid, phthalic anhydride, maleic anhydride, titanium tetrachloride, chlorosulfonic acid, phosphorus trichloride, ethylenediamine, cyclohexylamine, etc.

Class 9 Miscellaneous Dangerous Items: Wastewater from dangerous wastes listed in the “National Hazardous Waste List” (including copper waste, waste acid, waste alkali, nickel-containing waste, etc.), with dangerous goods numbers: HW18, HW21, HW22, HW23, HW27, HW33, HW34, HW35, HW46, and other related category numbers.

General Goods: Well washing fluid, fracturing fluid, water purifying agent, water reducer, cleaning agent, asphalt, hydraulic oil, edible oil, alcohol, milk, various liquid foods, etc.

Service Hotline: +8613872882788 +8613908665755 mail：[email protected] [email protected]

4x2 Dongfeng 5-10CBM 304 316 PE Carbon Steel Chemical Liquid Corrosives Light Tanker Truck supplier

PRODUCT SPECIFICATIONS

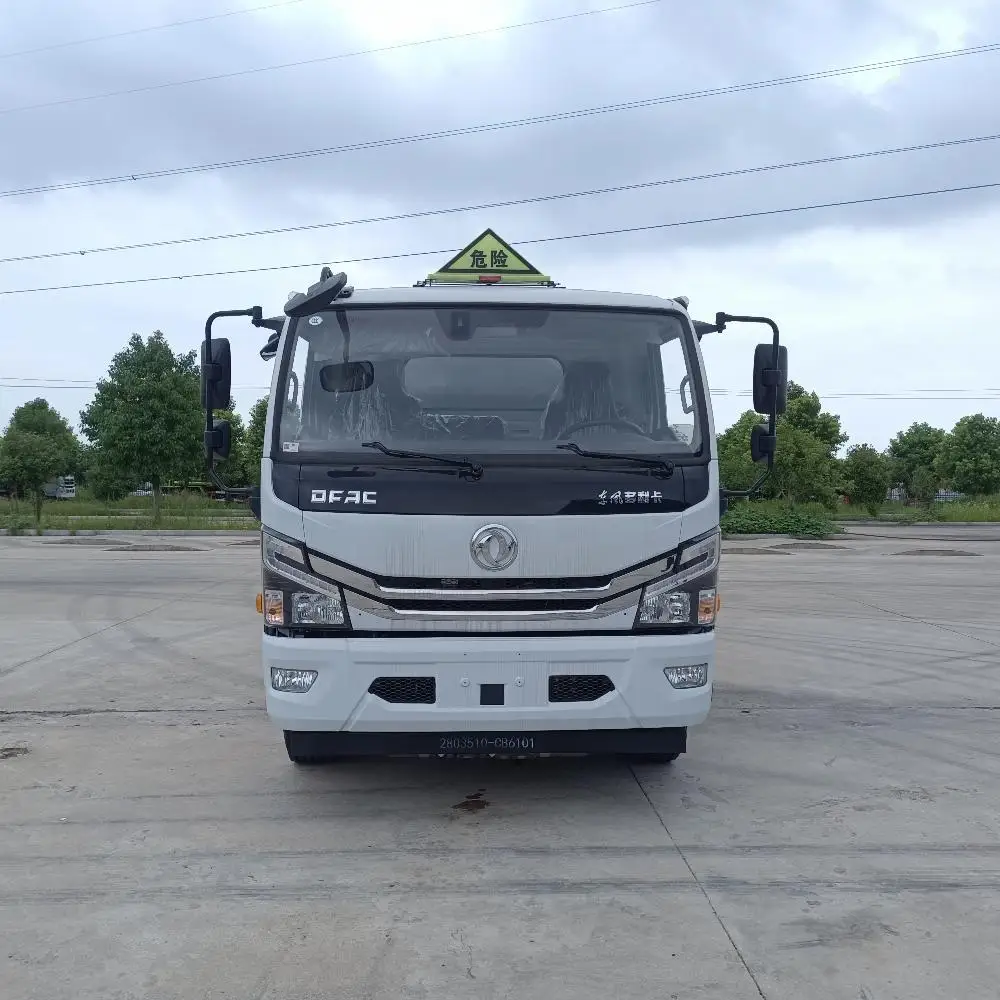

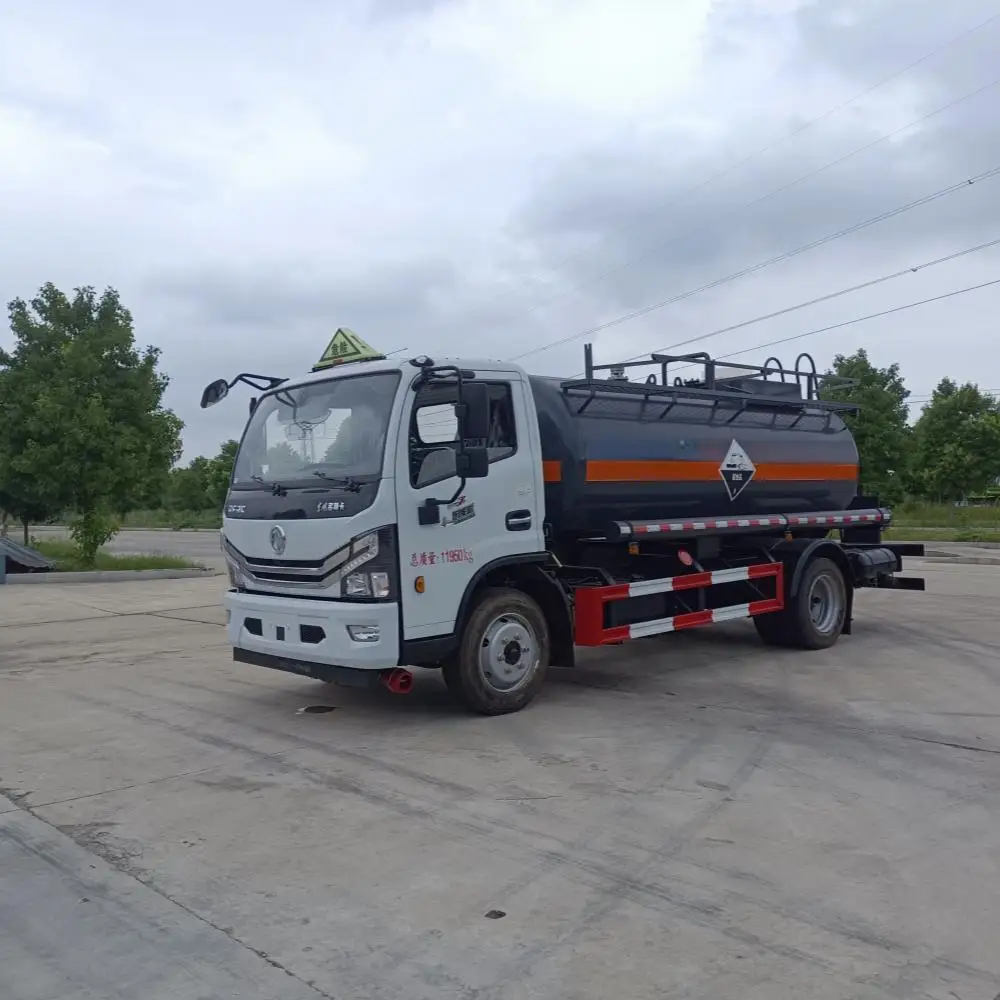

Name of vehicle	Chemical tanker truck
Vehicle type	CL5120GFWE
Chassis type	EQ1125SJ8CDCWXP
Volume	5-10 cubic meters
Total mass	11950Kg
Quality of equipment (Kg)	5055Kg
Vehicle length	6840 ×2200×2900
Rated load mass (kg)	6700
The engine	CY4SK261 170 horsepower
Chassis configuration	Dongfeng Fureka chassis configuration: cab: 2020 Dongfeng Fureka new engine: D30TCIF1 Yunne 170 hp, Dewei power, from German technology, high efficiency, environmental protection, strong power transmission: Faster 8-speed (high and low gears) planetary gearbox, easy to operate, low-speed high torque, mountainous areas of the first choice for the operation of the frame beam: 188 ✘ 6 double-layer through the beams of the front axle: 3.5 T Rear axle: 6.0T Tires: 255/70R22.5 Other: LCD digital instrument panel, multi-function steering wheel, cruise control, central locking, original air conditioning, electric glass, air brake, air brake, power steering, clutch power, ABS, air horn lane departure warning, collision warning. Wheelbase 3800mm.

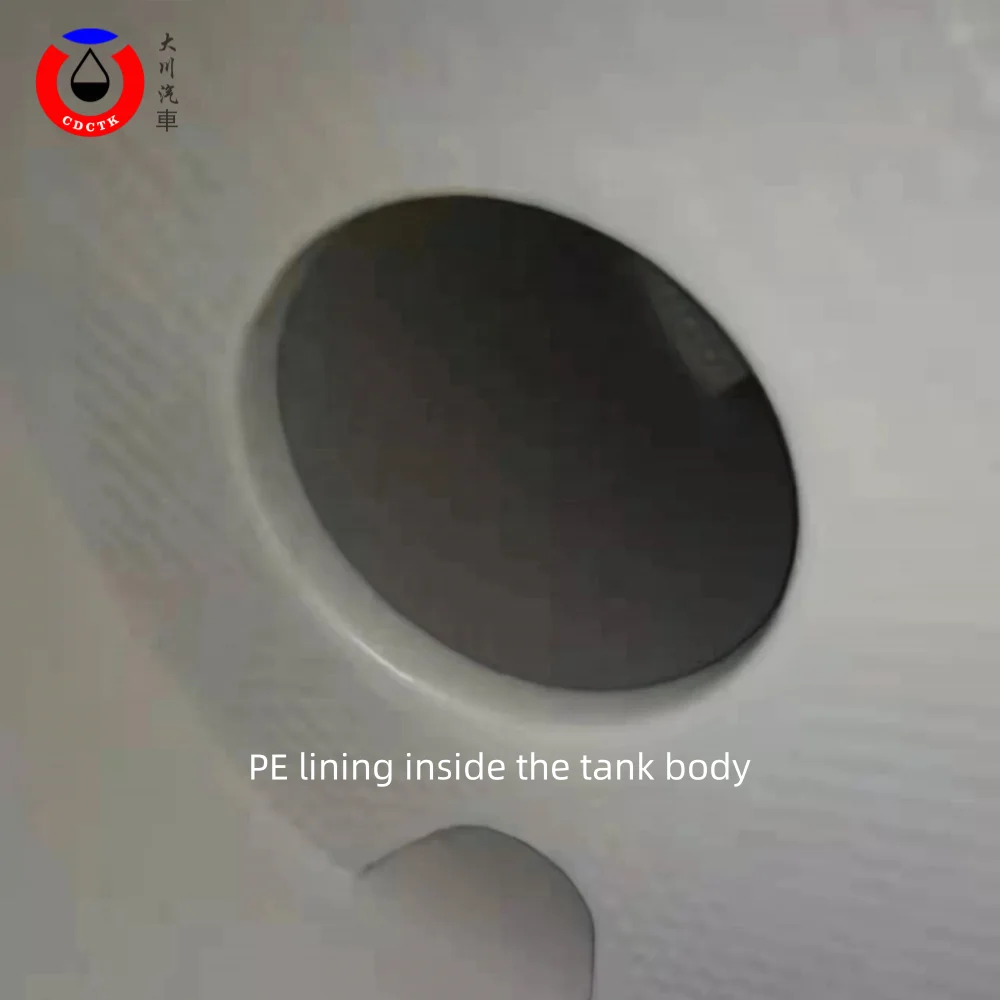

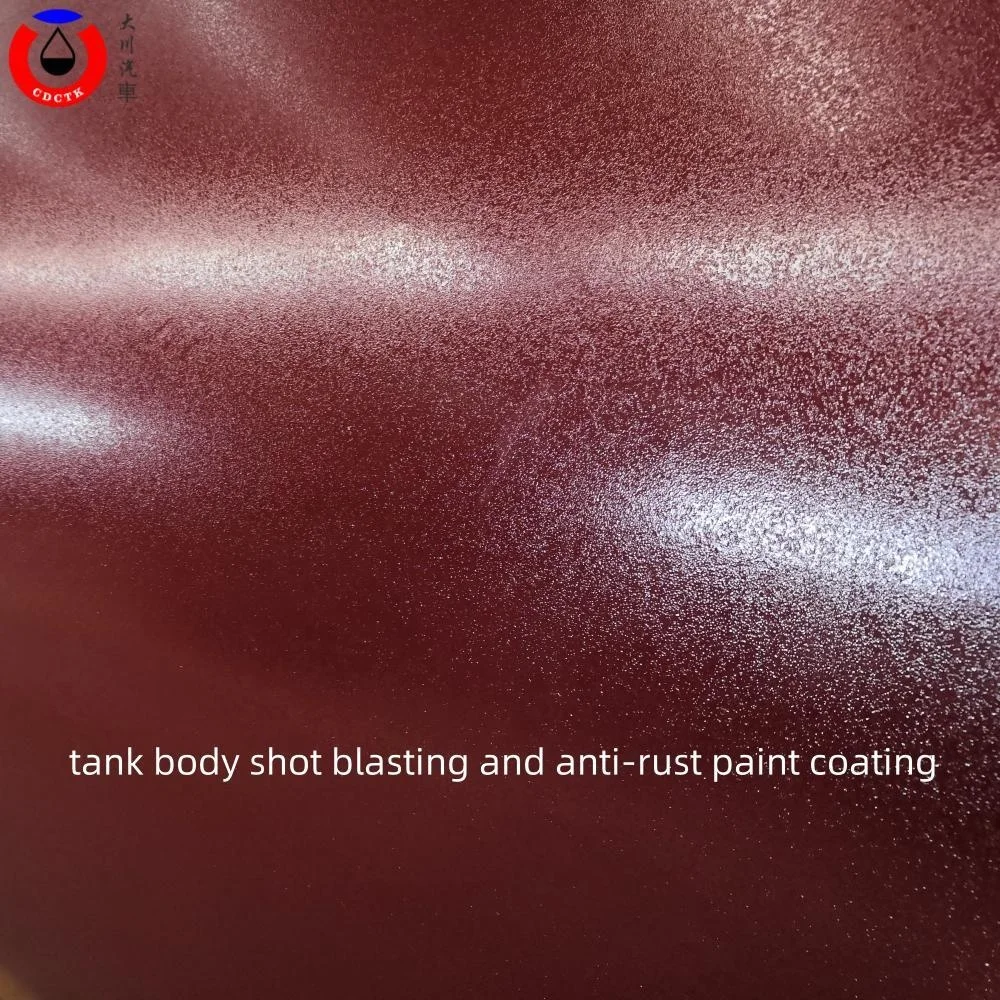

Semitrailer configuration	Upper standard configuration (steel liner plastic): in line with GB18564.1-2019 standard; L4BH design code; positive round steel and plastic tank; Q235 carbon steel + PE lining; polyethylene material lining; lining thickness of 16mm; carbon steel tank; rotary head; through the silo; double-layer bulkheads 2; top full plastic tank mouth 2; stainless steel vacuum valve 1; DN100 steel lined with plastic tee pipe 1; DN100 stainless steel PTFE submarine valve 1; submarine valve alarm device; rear tail left and right self-flowing DN80 PTFE ball valves 2; aluminium alloy movable guardrail; rear ladder, tool box, rear bumper, side protection are all steel parts; plastic export box 2; tank shot blasting; tank inspection report; quality assurance certificate; Upper standard configuration (stainless steel, carbon steel): in line with GB18564.1-2019 standard; L4BH design code; positive round tank; SUS304, SUS316 or Q235 carbon steel material to make the tank; the thickness of the barrel, head, bulkhead 5mm, 6mm, 5mm; spinning head; through the silo; bulkhead 2; tank top stainless steel or carbon steel tank mouth * 2; stainless steel Vacuum valve1; DN100 stainless steel or carbon steel tee pipe1; DN100 stainless steel or carbon steel submarine valve1; submarine valve alarm device; rear tail left and right self-flowing DN80 stainless steel or carbon steel ball valves2; aluminium alloy movable guardrail; rear ladder, tool box, rear bumper, side protection are all steel parts; plastic export box*2; tank shot peening; tank inspection report; quality assurance certificate; Upper optional configuration: optional shape according to the announcement; steel-plastic tank mouth; safety valve; rupture disc; divided into multiple compartments; plastic lining thickness of 18mm-20mm; aluminium alloy accessories; motor chemical pump or truck-mounted chemical pump; body, tank paint colour;
