30 square Meter Hongyan Front, Four Rear, and Eight Liquid Supply Trucks factory

Product Overview

Oil tanker truck

After years of accumulation, the company has risen to the forefront in the global special-purpose vehicle manufacturers, and is the leader in the domestic and foreign flammable and explosive liquids, tanker trucks, refuelling trucks, and the company adheres to the corporate philosophy of "professional manufacturing, creating high-quality products, and common development". Strictly in accordance with the national standards of the People's Republic of China, "GB 18564.1-2019 Road Transportation of Liquid Dangerous Goods Tanker Vehicles Part 1: Metal Normally Pressurised Tanks Technical Requirements", "GB 18564.1-2019 Road Transportation of Liquid Dangerous Goods Tanker Vehicles Part 2: Non-metallic Normally Pressurised Tanks Technical Requirements", "GB7258-2017 Motor Vehicle Operational Safety Technical Conditions". Conditions", "GB7258-2017 Motor Vehicle Operation Safety Technical Conditions", "GB7258-2017 Motor Vehicle Operation Safety Technical Conditions", "GB7258-2017 Motor Vehicle Operation Safety Technical Conditions", "GB7258-2017 Motor Vehicle Operation Safety Technical Conditions", "GB7258-2017 Motor Vehicle Operation Safety Technical Conditions", "GB7258-2017 Motor Vehicle Operation Safety Technical Conditions".

The tank inspection report below is from the China National Accreditation Service for Conformity Assessment (CNAS).

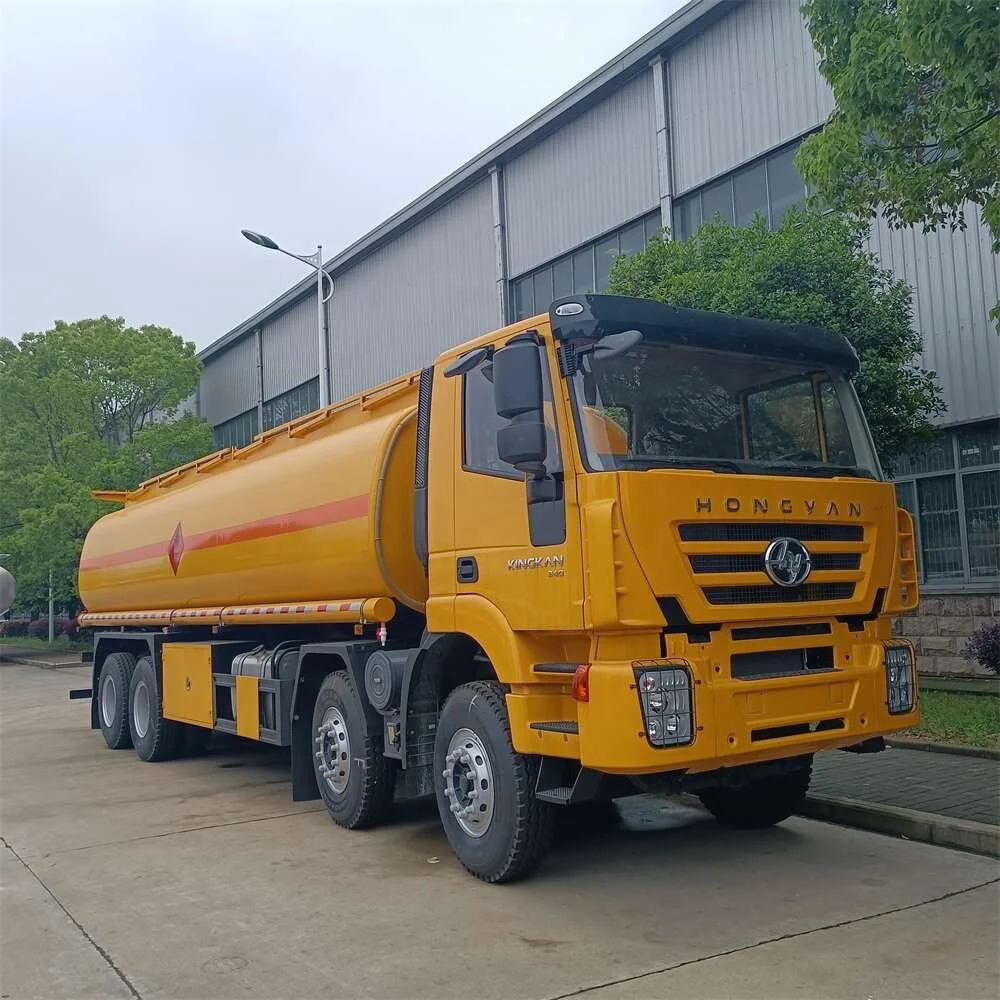

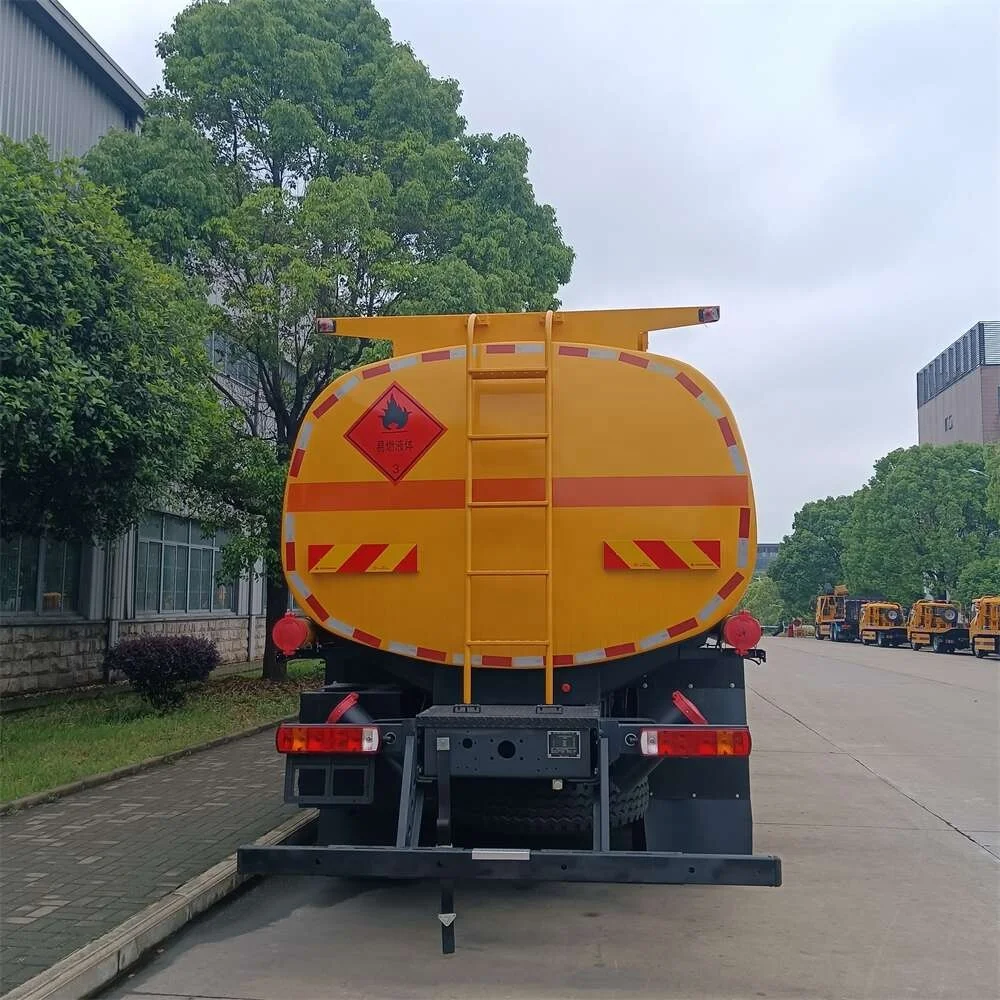

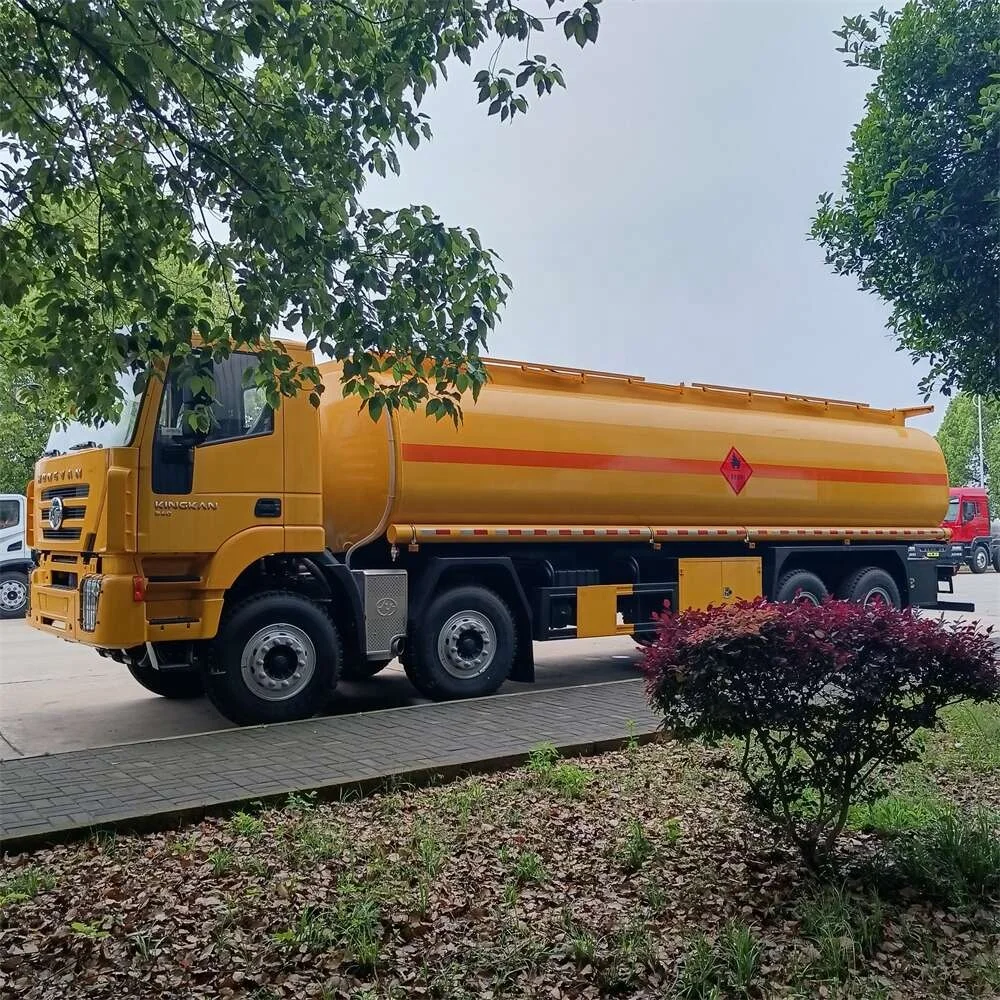

30 square Meter Hongyan Front, Four Rear, and Eight Liquid Supply Trucks details

30 square Meter Hongyan Front, Four Rear, and Eight Liquid Supply Trucks supplier

Dedicated to the research and development, production and manufacture of hazardous chemical transport vehicles, storage equipment and components. Relying on domestic and foreign series of special-purpose vehicle chassis, Isuzu Hino Nissan JAC Iveco (Yuejin) Iveco (Hongyan) Northern Heavy Duty Truck China Heavy Duty Truck Foton Shakman Dongfeng FAW Yangman CAMC Jiangling Xugong. Tank part is for different media, cargo type, concentration, density and vehicle acquisition cost, carrying capacity, corrosion margin and other requirements, tank manufacturing materials can be divided into: carbon steel, manganese steel, aluminium alloy, titanium alloy, aluminium, 304 stainless steel, 316 stainless steel, C4 steel, foam insulation and other materials.

Class 3 flammable substances (FL-type vehicles): acetone, adhesives, paints, varnishes, alcohols, spice products, petrol, diesel fuel, aviation fuel, heating oil, paraffin, resins, tar, turpentine, ethanol, benzene, butanol, isopropanol, methanol, octane, etc.

General cargo: well washing fluid, fracturing fluid, water purifying agent, water reducing agent, cleaning agent, asphalt, hydraulic oil, edible oil, wine, milk, various liquid foodstuffs, etc.

Service Hotline: +8613872882788 +8613908665755 mail：[email protected] [email protected]

PRODUCT SPECIFICATIONS

Name of vehicle	Oil tanker truck
Vehicle type	CS5310GPCQ
Chassis type	CQ1315HTG466V
Volume	25-35 cubic meters
Total mass	31000Kg
Quality of equipment (Kg)	11005Kg
Vehicle length	11990 ×2500×3750
Rated load mass (kg)	19800,19865
The engine	Ca6dk1-32e61 Datai 320 horsepower

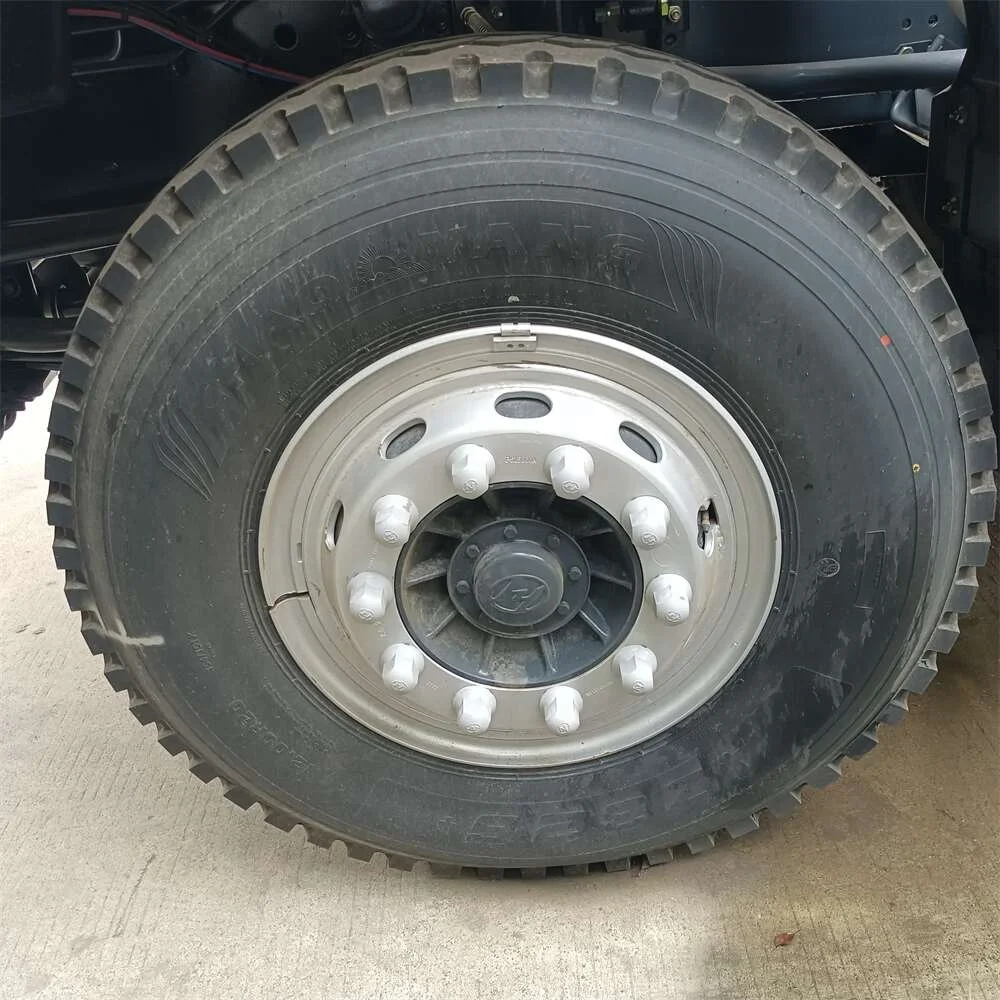

Chassis configuration	SAIC Hongyan front four rear eight chassis, LCD instrument panel, electric window regulator, electric rearview mirror, rear curtain rail, Panoramic curtain guide rail, driver's seat with air damping seat, single DIN Beidou compatible vehicle system, power main switch control Switch, SC10E350Q4 engine, engine power: 350PS 435 welded axle (imported ABS, 1878 wheelbase, 2-hole V-shaped rod), rear axle speed ratio: 3.727, 12R22.5 type 18 grade tires (Light duty wheels, top domestic brands), F5N-1950 front axle, others: 270 x 75 x (7+5), automatic air conditioning, front And bottom protection device, cab four point spiral spring suspension, integrated wide body bumper, electro-hydraulic lifting Device, rear suspension 2500mm, vehicle speed limit, exhaust spark extinguisher, vehicle equipped with electrostatic barrier, The cab is equipped with a 2kg dry powder fire extinguisher, suspended 3/3/- (8 airbags), exhaust tailpipe and muffler, front, front, and rear Wedge brake device, right turn sound warning, emergency tire blowout safety device, seat belt wearing reminder
tanker configuration	Carbon steel top loading configuration: effective tank volume :25-35 cubic meters, Q235B plate, 5mm thick cylinder, 5.75mm thick head, 5mm thick bulkhead, single tank with 2 tank ports, a set of European standard system, 1 submarine valve with voice alarm device with 80/60 pump, rear ladder, manual guardrail, toolbox, rear bumper, side guardrail, according to the new standard, Other manufacturers standards, gasoline, diesel and other fuel medium tank inspection report. Aluminum alloy top configuration: effective volume of oil tank :25-35 cubic meters, 5182 aluminum alloy plate, 6 thick tank, 6 thick head, 6 thick bulkhead, single bin, tank top, European standard port, 1 intelligent submarine valve, 1 set of lower charge (discharge valve, oil and steam recovery, anti-overflow probe, anti-static coil), with 80-60 special oil pump (pump can be pumped in and out), rear ladder, Manual guardrail, toolbox, rear bumper, side guardrail are aluminum alloy. The side guardrail is made of aluminum alloy sheet, according to the new standard and other manufacturers' standards, the diesel medium tank inspection report. Optional: Zhengxing large flow fuel refueling machine, 15m thick drum and gun, multi-bin and pipeline system.
