Chemical Tanker

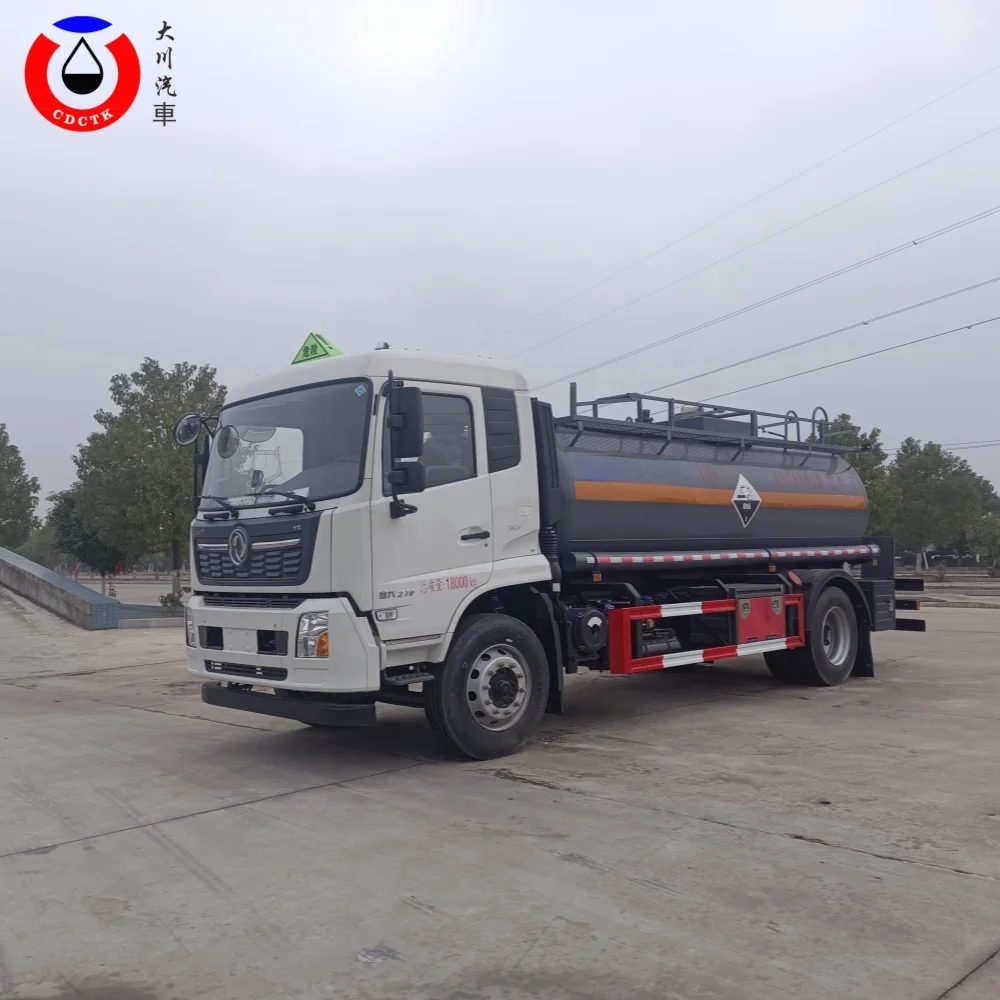

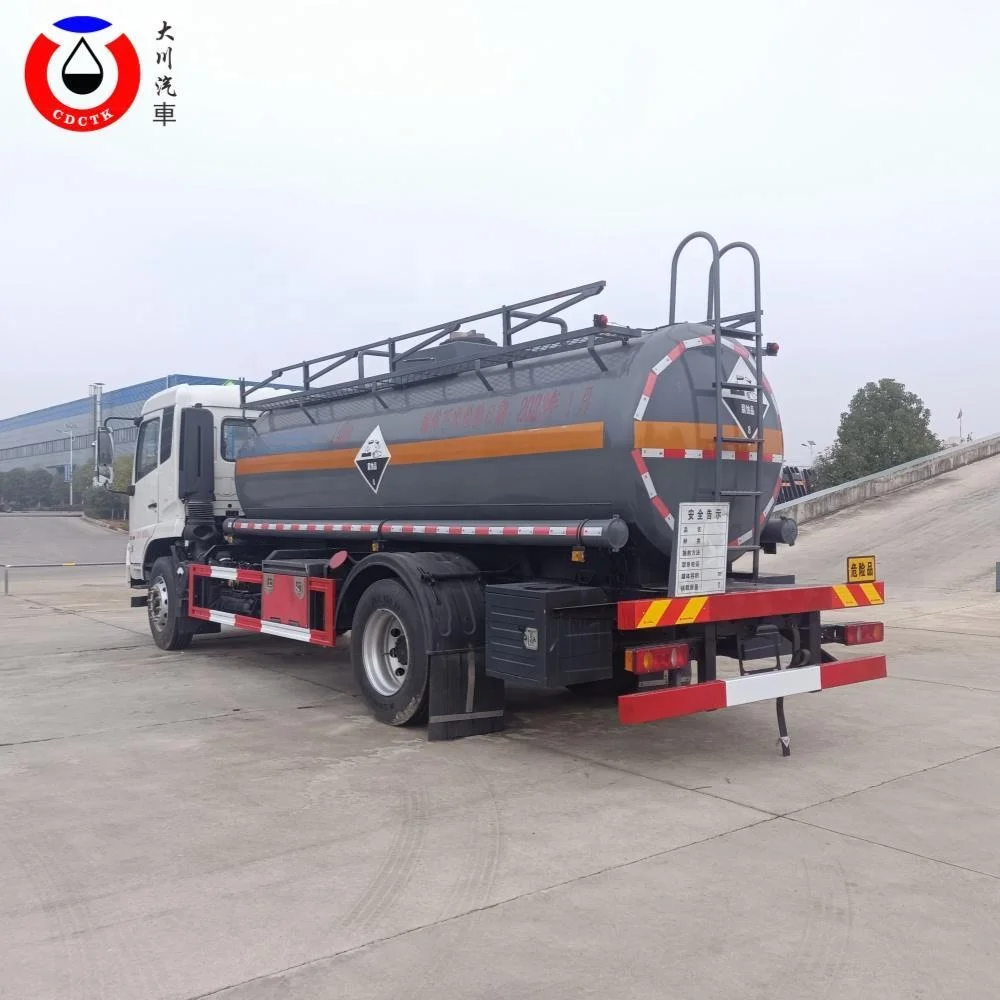

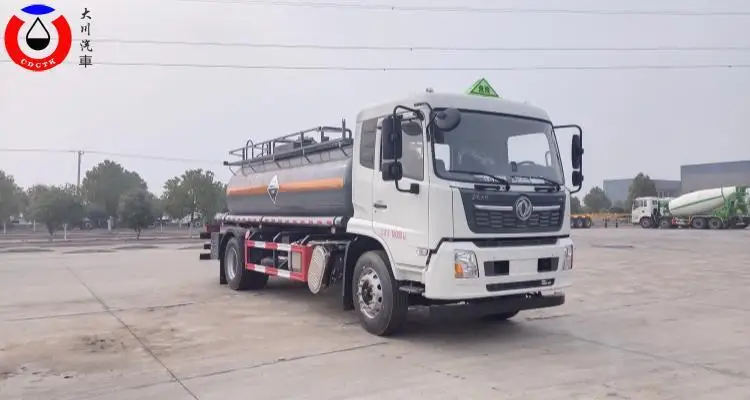

4x2 Dongfeng 8-15CBM 304 316 PE Carbon Steel Chemical Liquid Corrosives Tanker Truck

4x2 Dongfeng 8-15CBM 304 316 PE Carbon Steel Chemical Liquid Corrosives Tanker Truck

Sales Executive Yanis：
Tel:+8613872882788 E-mail:[email protected]

Introduction

Introduction

4x2 Dongfeng 8-15CBM 304 316 PE Carbon Steel Chemical Liquid Corrosives Tanker Truck factory

Product Overview

Chemical tanker truck

Outstanding Quality · Made by CDCTK

Our company, after years of development and growth, has emerged as a leader in the global specialty vehicle manufacturing industry. We are a leading figure in the production of vehicles for transporting flammable and explosive liquids, corrosive liquids, oxidizing liquids, chemical lined plastic tankers, and chemical liquid storage tanks, both domestically and internationally. The company adheres to the business philosophy of “professional manufacturing, creating quality products, and mutual development.” We strictly follow the national standards of the People’s Republic of China, such as “GB 18564.1-2019 Road Transport Liquid Dangerous Goods Tank Vehicles Part 1: Technical Requirements for Metal Atmospheric Tanks,” “GB 18564.1-2019 Road Transport Liquid Dangerous Goods Tank Vehicles Part 2: Technical Requirements for Non-Metal Atmospheric Tanks,” and “GB7258-2017 Motor Vehicle Operating Safety Technical Conditions” in our design and production. We also meet the requirements of “Operational Truck Safety Technical Conditions (JT/T1178.1-2018)” and are listed in the road transport vehicle standard models. The tank inspection report below is from the China National Accreditation Service for Conformity Assessment (CNAS).

4x2 Dongfeng 8-15CBM 304 316 PE Carbon Steel Chemical Liquid Corrosives Tanker Truck supplier

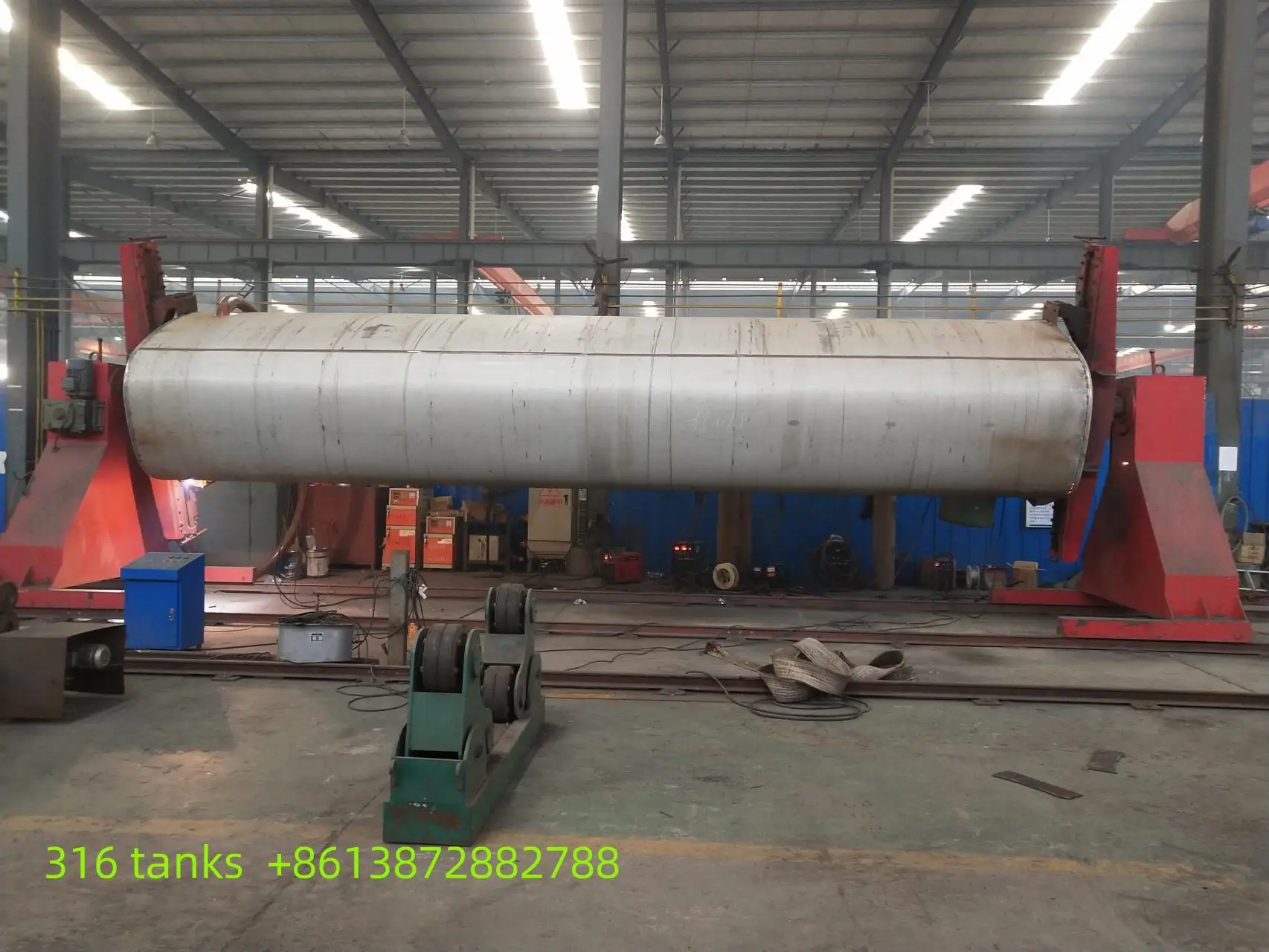

Main Business We are dedicated to the research, development, production, and manufacturing of hazardous chemical transport vehicles, storage equipment, and parts. Relying on a series of domestic and international specialty vehicle chassis, the tank body is tailored to different media, chemical properties of goods, types, concentrations, environmental temperatures, vehicle purchase costs, load capacity, and corrosion allowance requirements. The materials used for manufacturing the tank body include carbon steel, manganese steel, aluminum alloy, titanium alloy, aluminum, 304 stainless steel, 316 stainless steel, C4 steel, steel lined with plastic (polyethylene) (polypropylene) (polytetrafluoroethylene), steel lined with rubber, plastic, ceramic, fiberglass, carbon fiber, foam insulation, and more.

Class 8 Corrosive Items (AT-type vehicles): Hypochlorite solutions, hydrochloric acid, sulfuric acid, sodium hydroxide, potassium hydroxide, sodium hypochlorite, liquid alkali, ammonia water, hydrochloric acid, caustic soda, nitric acid, phosphoric acid, boric acid, aluminum chloride solution, hydrofluoric acid, formaldehyde, glacial acetic acid, acetic acid, acrylic acid, fluoroboric acid, propionic acid, hydrogen peroxide, ferric chloride solution, dichloromethane, fluorosilicic acid, trichloroacetic acid, hydriodic acid, phthalic anhydride, maleic anhydride, titanium tetrachloride, chlorosulfonic acid, phosphorus trichloride, ethylenediamine, cyclohexylamine, etc.

Class 9 Miscellaneous Dangerous Items: Wastewater from dangerous wastes listed in the “National Hazardous Waste List” (including copper waste, waste acid, waste alkali, nickel-containing waste, etc.), with dangerous goods numbers: HW18, HW21, HW22, HW23, HW27, HW33, HW34, HW35, HW46, and other related category numbers.

General Goods: Well washing fluid, fracturing fluid, water purifying agent, water reducer, cleaning agent, asphalt, hydraulic oil, edible oil, alcohol, milk, various liquid foods, etc.

Service Hotline: +8613872882788 +8613908665755 mail：[email protected] [email protected]

4x2 Dongfeng 8-15CBM 304 316 PE Carbon Steel Chemical Liquid Corrosives Tanker Truck details

PRODUCT SPECIFICATIONS

Name of vehicle	Corrosive chemical tanker truck
Vehicle type	CL5180GFWE
Chassis type	DFH1180EX9
Volume	8-15 cubic meters
Total mass	18000Kg
Quality of equipment (Kg)	7805Kg
Vehicle length	8415 ×2500×3200
Rated load mass (kg)	10000,10065
The engine	B6.2NS6B210 210hp
Chassis configuration	Wheelbase 4700, cab D530 semi standard roof, engine B6.2NS6B210, aftertreatment U type, transmission 8JS85E-C, gear ratio 10.36/0.79, front and rear axles. Aftertreatment U type, gearbox 8JS85E-C, gear ratio 10.36/0.79, front and rear axle 4.5T9T single reduction, leaf spring 3/-, frame 250×80×7+4, fuel tank aluminium 160L, main reduction ratio 4.88, tyres 275/80R22.518PR, extractor interface with air conditioning, with with PTO connector, without PTO device, with CarLog, exhaust front, front disc brakes, front tyre blowout emergency, ECU speed limit, Hazmat warning lights, EBS (Electro-Brake System) EBS (Electro-Braking System), with FCWS/LDWS (Forward Collision/Lane Departure Warning), with TPMS (single front axle tyre pressure monitoring), with ESC (anti-rollover system), with exhaust brake

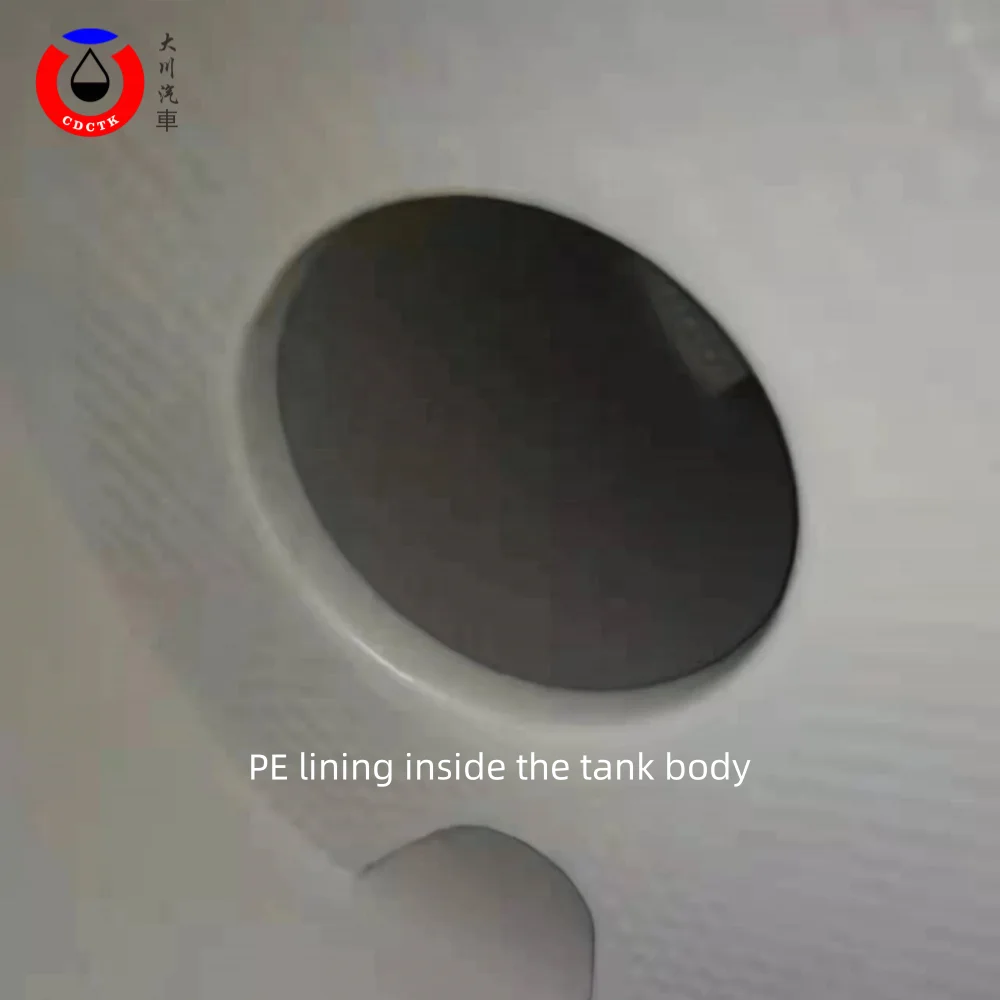

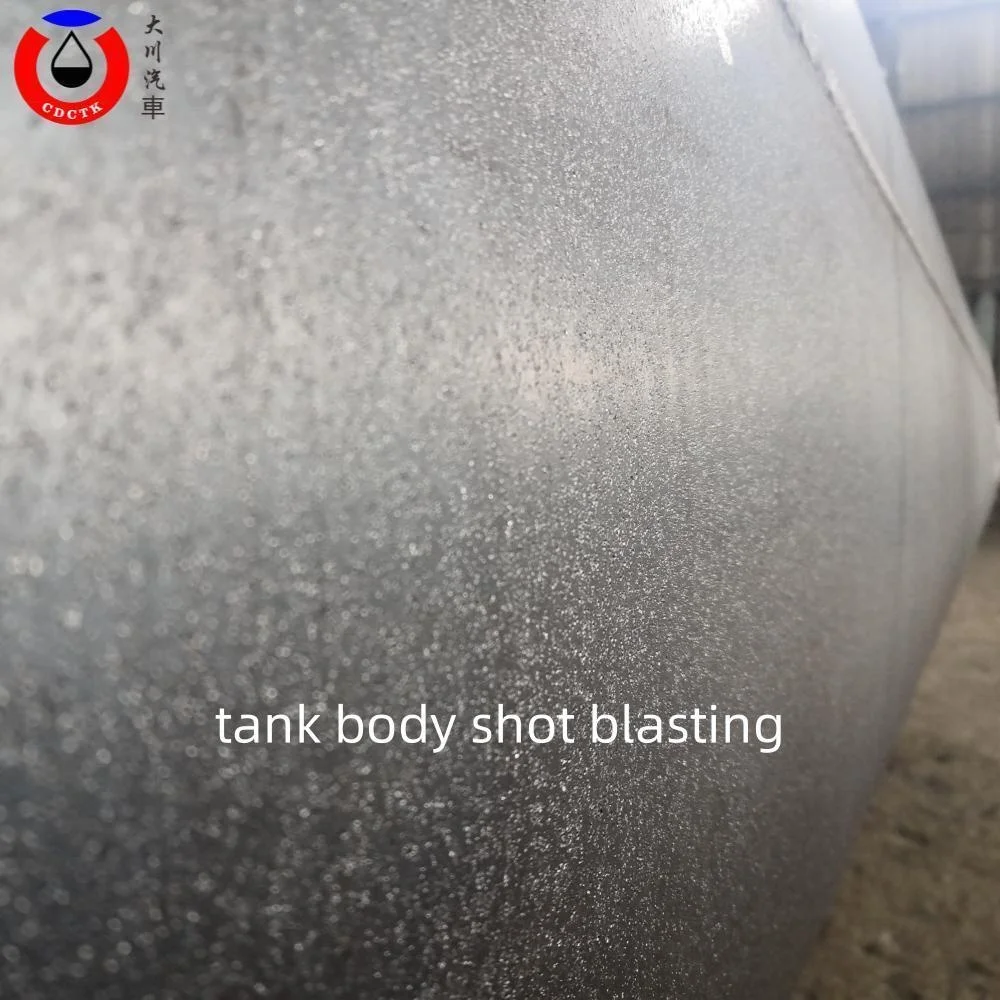

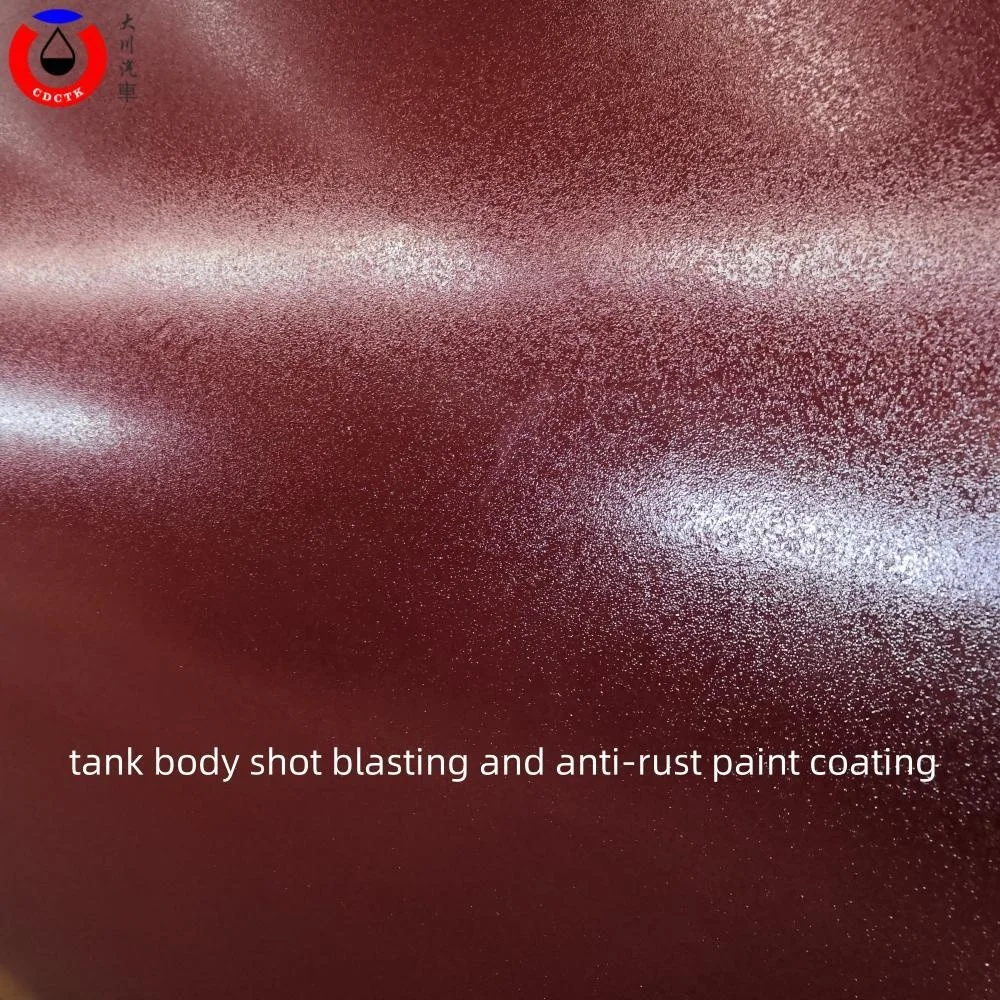

Tanker configuration	Upper standard configuration (steel lining): square steel-plastic tank; Q235 carbon steel + PE lining; polyethylene material lining; lining thickness 16mm; carbon steel tank; rising head; through the warehouse; double-layer partition plate 1; top full plastic tank mouth 1; breathing valve 1; DN100 steel lining plastic tee pipeline 1; DN100 stainless steel PTFE butterfly valve 1; rear tail left and right self-flowing DN80 PTFE steel-plastic ball valves 2; aluminium alloy movable guardrail; rear ladder, tool box, rear bumper and side protection are all steel parts; plastic export box *2; shot blasting of tank body;Upper optional configuration: optional shape according to the announcement; steel-plastic tank mouth; divided into multiple compartments; plastic lining thickness of 18mm-20mm; aluminium alloy accessories; motor chemical pump or truck-mounted chemical pump; body and tank paint colours;
