6x2C FAW JIEFANG 15-26CBM 304 316 Q235B Carbon Steel Aluminum Gasoline Petrol Diesel Kerosene Paraffin Fuel Oil Tanker Truck

6x2C FAW JIEFANG 15-26CBM 304 316 Q235B Carbon Steel Aluminum Gasoline Petrol Diesel Kerosene Paraffin Fuel Oil Tanker Truck

Sales Executive Yanis：
Tel:+8613872882788 E-mail:[email protected]

Introduction

Introduction

Product Overview

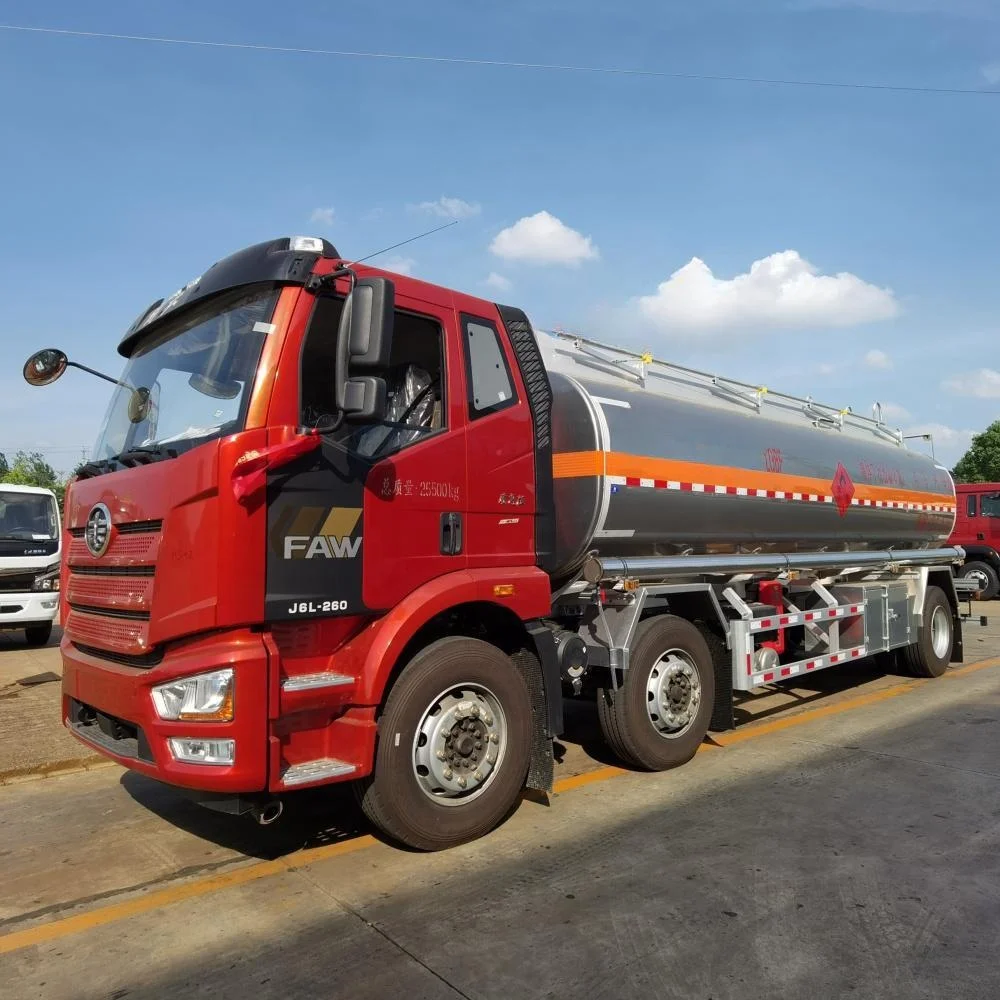

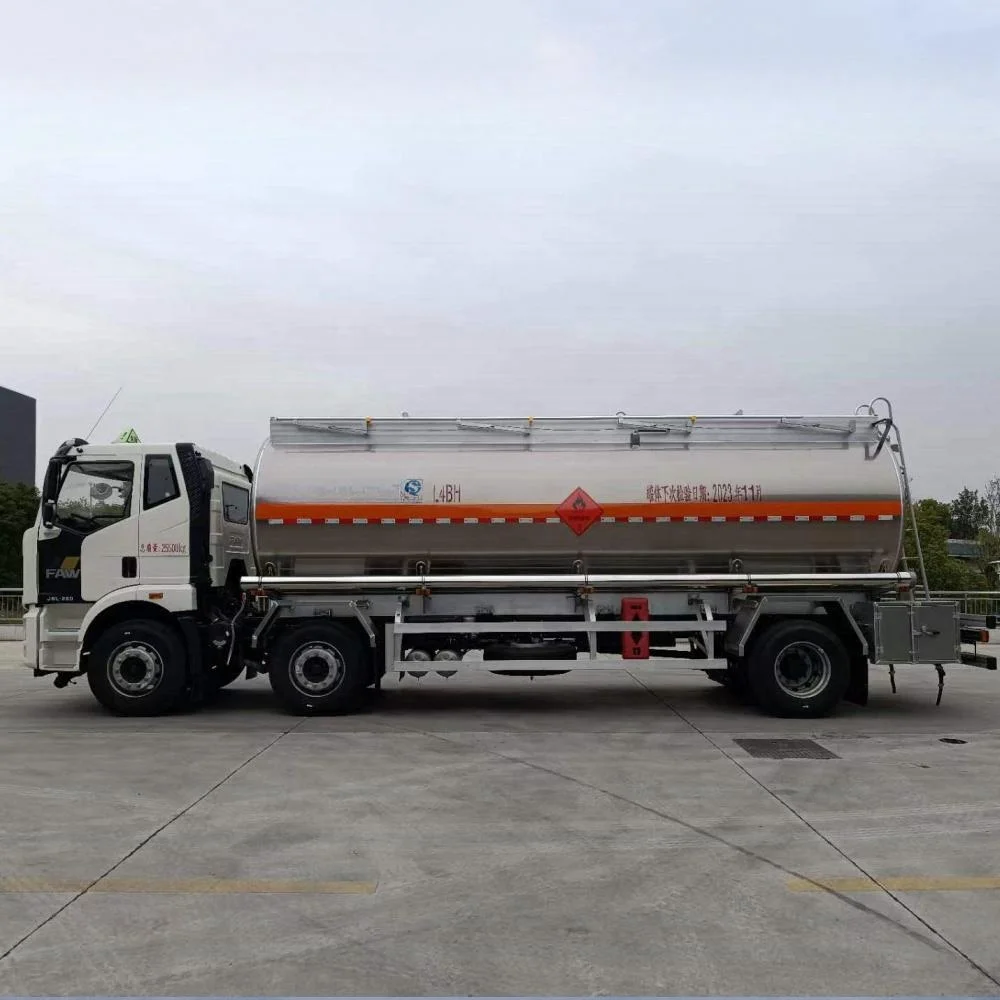

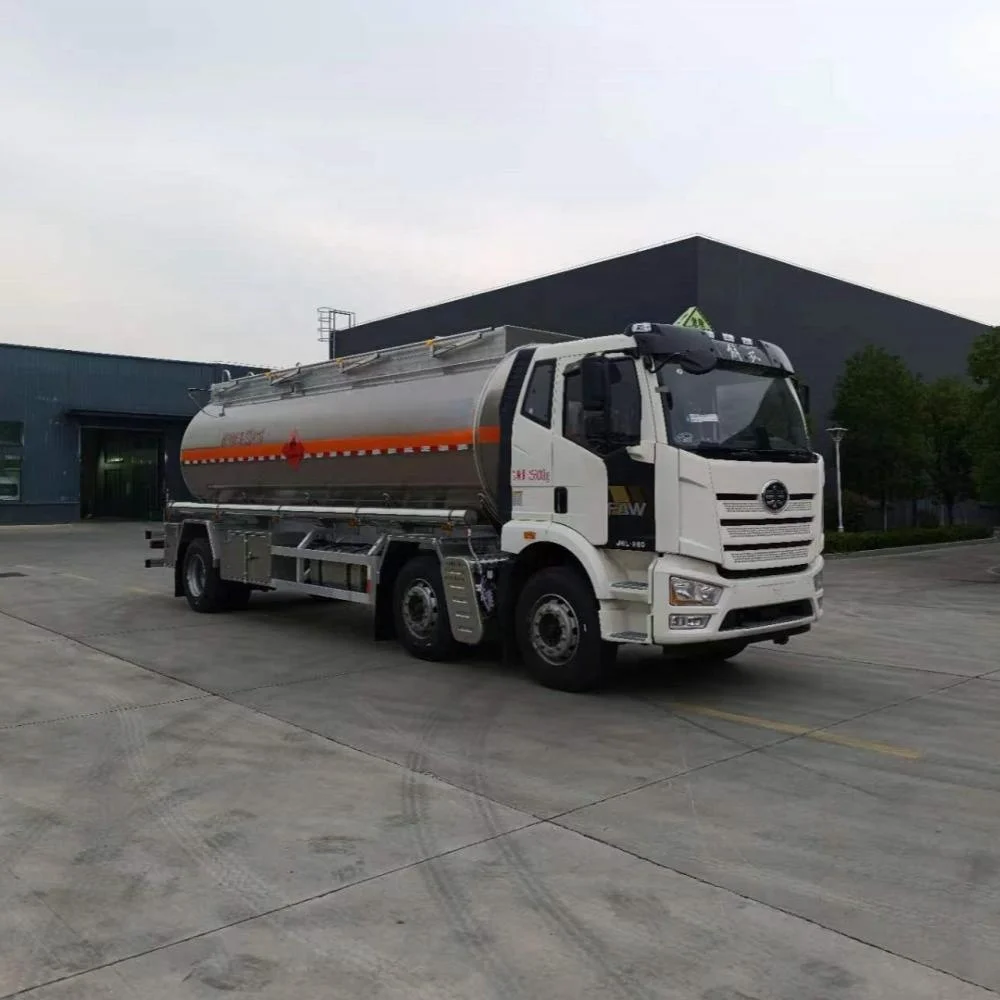

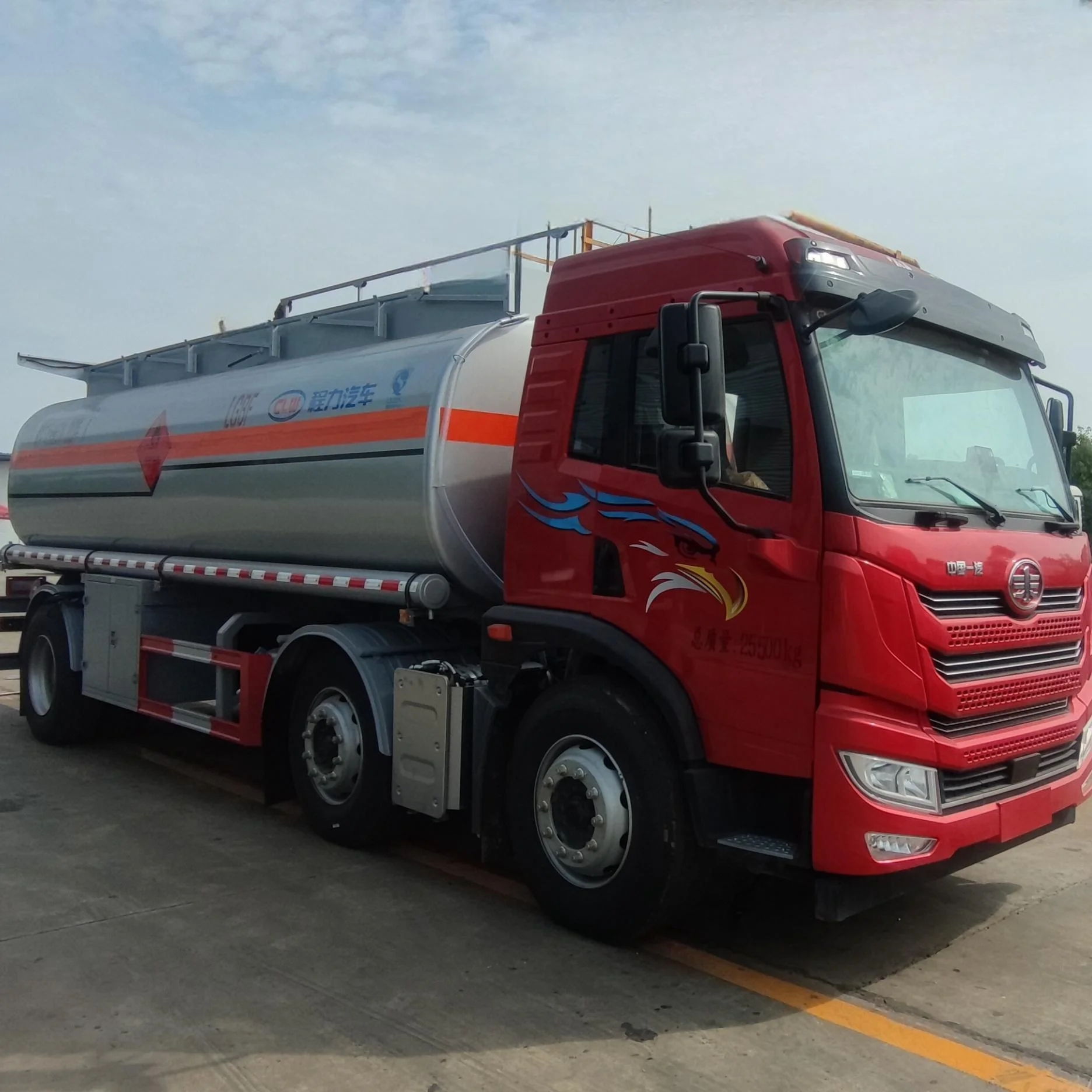

Oil tanker truck

After years of accumulation, the company has risen to the forefront in the global special-purpose vehicle manufacturers, and is the leader in the domestic and foreign flammable and explosive liquids, tanker trucks, refuelling trucks, and the company adheres to the corporate philosophy of "professional manufacturing, creating high-quality products, and common development". Strictly in accordance with the national standards of the People's Republic of China, "GB 18564.1-2019 Road Transportation of Liquid Dangerous Goods Tanker Vehicles Part 1: Metal Normally Pressurised Tanks Technical Requirements", "GB 18564.1-2019 Road Transportation of Liquid Dangerous Goods Tanker Vehicles Part 2: Non-metallic Normally Pressurised Tanks Technical Requirements", "GB7258-2017 Motor Vehicle Operational Safety Technical Conditions". Conditions", "GB7258-2017 Motor Vehicle Operation Safety Technical Conditions", "GB7258-2017 Motor Vehicle Operation Safety Technical Conditions", "GB7258-2017 Motor Vehicle Operation Safety Technical Conditions", "GB7258-2017 Motor Vehicle Operation Safety Technical Conditions", "GB7258-2017 Motor Vehicle Operation Safety Technical Conditions", "GB7258-2017 Motor Vehicle Operation Safety Technical Conditions".

The tank inspection report below is from the China National Accreditation Service for Conformity Assessment (CNAS).

6x2C FAW JIEFANG 15-26CBM 304 316 Q235B Carbon Steel Aluminum Gasoline Petrol Diesel Kerosene Paraffin Fuel Oil Tanker Truck details

Dedicated to the research and development, production and manufacture of hazardous chemical transport vehicles, storage equipment and components. Relying on domestic and foreign series of special-purpose vehicle chassis, Isuzu Hino Nissan JAC Iveco (Yuejin) Iveco (Hongyan) Northern Heavy Duty Truck China Heavy Duty Truck Foton Shakman Dongfeng FAW Yangman CAMC Jiangling Xugong. Tank part is for different media, cargo type, concentration, density and vehicle acquisition cost, carrying capacity, corrosion margin and other requirements, tank manufacturing materials can be divided into: carbon steel, manganese steel, aluminium alloy, titanium alloy, aluminium, 304 stainless steel, 316 stainless steel, C4 steel, foam insulation and other materials.

Class 3 flammable substances (FL-type vehicles): acetone, adhesives, paints, varnishes, alcohols, spice products, petrol, diesel fuel, aviation fuel, heating oil, paraffin, resins, tar, turpentine, ethanol, benzene, butanol, isopropanol, methanol, octane, etc.

General cargo: well washing fluid, fracturing fluid, water purifying agent, water reducing agent, cleaning agent, asphalt, hydraulic oil, edible oil, wine, milk, various liquid foodstuffs, etc.

Service Hotline: +8613872882788 +8613908665755 mail：[email protected] [email protected]

product 6x2c faw jiefang 15 26cbm 304 316 q235b carbon steel aluminum gasoline petrol diesel kerosene paraffin fuel oil tanker truck-1

PRODUCT SPECIFICATIONS

Name of vehicle	Oil tanker truck
Vehicle type	CL5250JJYC
Chassis type	CA5320GYYP62K1L6T4E6
Volume	25.6 cubic meters
Total mass	32000Kg
Quality of equipment (Kg)	10705Kg
Vehicle length	11730 ×2550×3650
Rated load mass (kg)	21100,21165
The engine	Ca6dk1-32e61 Datai 320 horsepower
Chassis configuration	Wheelbase 4700, HOWO TX5; Special Purpose Vehicle; TX-L Cab; Manual Mirrors; Primary Airbag + Secondary Easy Seat; MC07.25-60 Engine; HW95508STC Transmission + HW45ZC Flange Pickup; VPD050QB Front Axle (Disc); MCY11BES Single Rear Axle (Disc); Speed Ratio 4.63; Single-Layer Frame (8/280) ; Front Less Rear Air Suspension(3/-); Domestic Steering Wheel; Front Exhaust System; EBS+ESC; Neutral Bumper(Non-Metallic); Ordinary Wheels; 295/80R22.5; 200L Fuel Tank; LDWS+FCWS(with Radar); Lasso PTO; China Heavy Duty Truck Intelligent Pass D Version; Electromagnetic Power Switch; Emergency Device for Steering Wheel Blowout; Optional Tire Pressure Monitoring System;

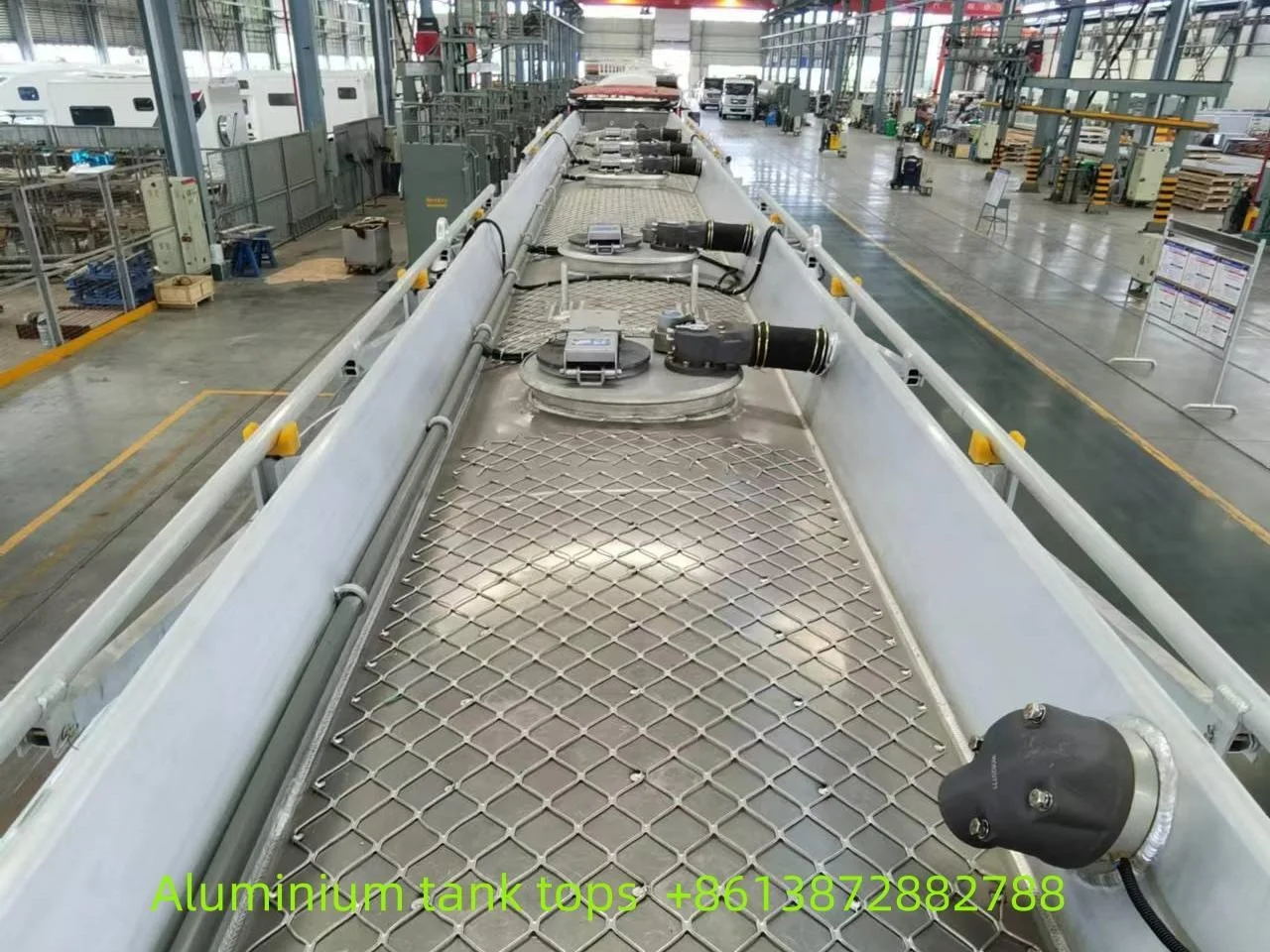

tanker configuration	Carbon steel top-loading configuration: tank effective volume: 10 cubic metres, Q235B plate, cylinder 5mm thick, head 5.75mm thick, bulkhead 5mm thick, single compartment with 1 tank mouth, a set of European standard system, 1 submarine valve with voice alarm device with 80/60 pump, rear ladder, manual guardrail, toolbox, rear bumper, side guardrail, according to the new standard,other manufacturers standard, can be out of the petrol and diesel fuel medium tank inspection report. Aluminium alloy topconfiguration: tank effective volume: 10 cubic meters, 5182 aluminium alloy plate, 6 thick tank, 6 thick head, 6 thick bulkhead, single warehouse, the top of the tank, a European standard mouth, 1 intelligent submarine valve, 1 set of underfilling(unloading valves, oil and steam recycling, overflow-proof probe, anti-static coils), with a 80-60 special oil pump (pumps can be pumped in and pumped out), after the climbing ladder, manual guardrail, tool box, rear bumper, side guardrail are aluminium alloy.Side guardrails are made of aluminium alloy plate, according to the new standard, other manufacturers standard, out of diesel medium tank inspection report. Options: Zhengxing high-flow fuel dispenser, 15m thicker reel and gun, multi-bin and pipeline system.
