Fuel tanker

8 * 4 SITRAK Front Four Rear Eight 27.5 square Aluminum Alloy Q235 Carbon Steel 304 Stainless Steel Oil Tanker

8 * 4 SITRAK Front Four Rear Eight 27.5 square Aluminum Alloy Q235 Carbon Steel 304 Stainless Steel Oil Tanker

Sales Executive Yanis：
Tel:+8613872882788 E-mail:[email protected]

Introduction

Introduction

8 * 4 SITRAK Front Four Rear Eight 27.5 square Aluminum Alloy Q235 Carbon Steel 304 Stainless Steel Oil Tanker factory

Product Overview

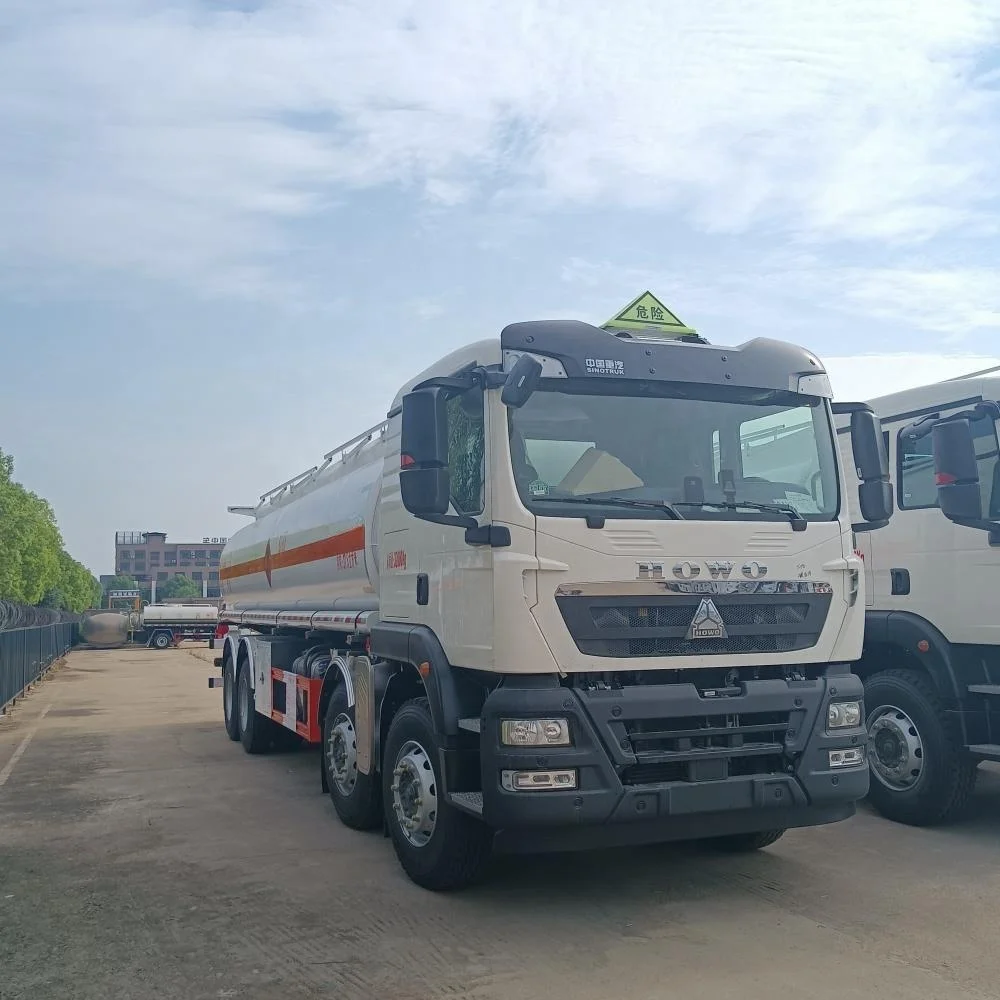

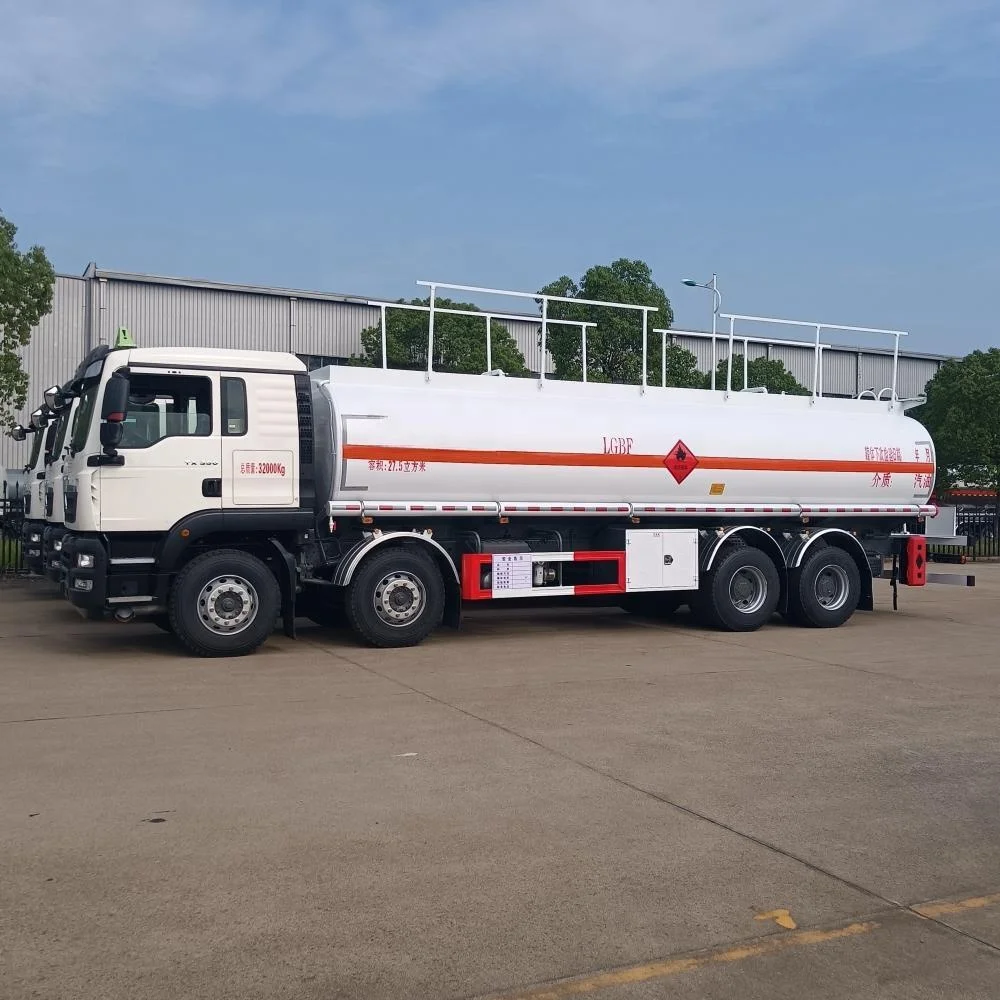

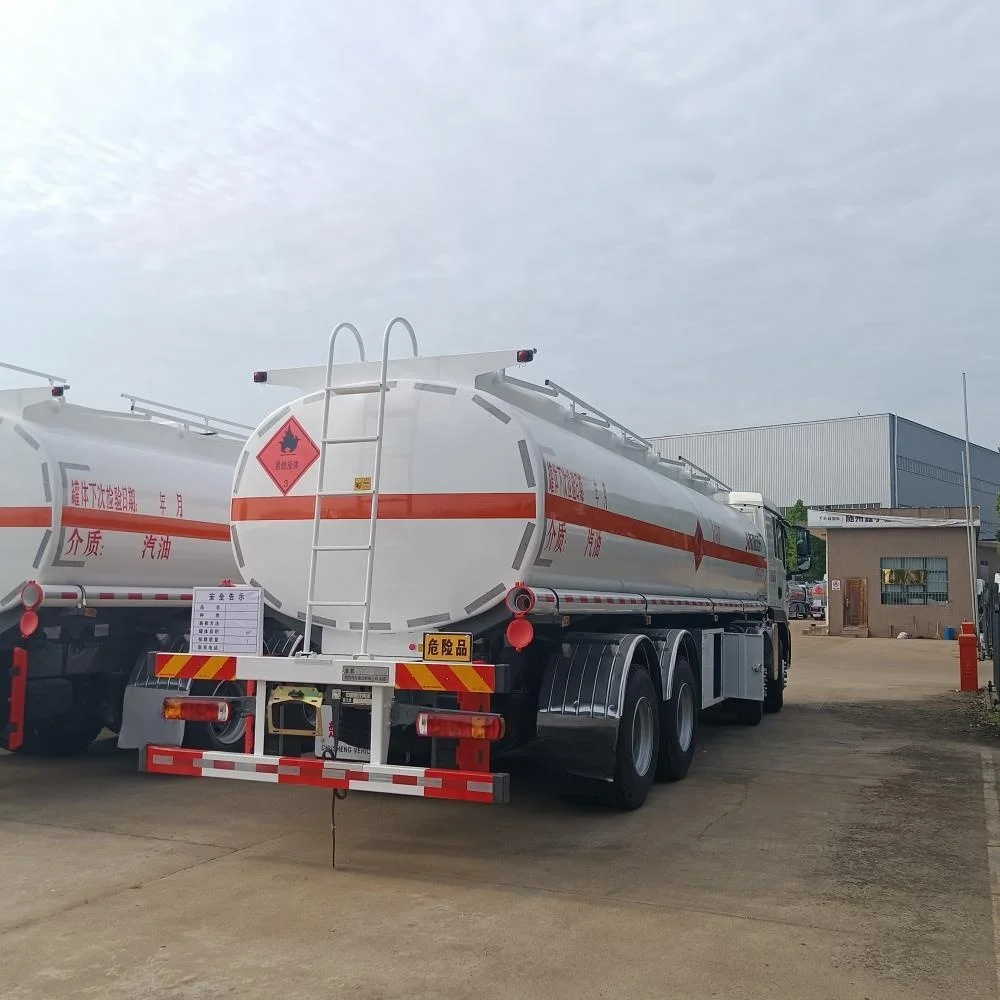

Oil tanker truck

After years of accumulation, the company has risen to the forefront in the global special-purpose vehicle manufacturers, and is the leader in the domestic and foreign flammable and explosive liquids, tanker trucks, refuelling trucks, and the company adheres to the corporate philosophy of "professional manufacturing, creating high-quality products, and common development". Strictly in accordance with the national standards of the People's Republic of China, "GB 18564.1-2019 Road Transportation of Liquid Dangerous Goods Tanker Vehicles Part 1: Metal Normally Pressurised Tanks Technical Requirements", "GB 18564.1-2019 Road Transportation of Liquid Dangerous Goods Tanker Vehicles Part 2: Non-metallic Normally Pressurised Tanks Technical Requirements", "GB7258-2017 Motor Vehicle Operational Safety Technical Conditions". Conditions", "GB7258-2017 Motor Vehicle Operation Safety Technical Conditions", "GB7258-2017 Motor Vehicle Operation Safety Technical Conditions", "GB7258-2017 Motor Vehicle Operation Safety Technical Conditions", "GB7258-2017 Motor Vehicle Operation Safety Technical Conditions", "GB7258-2017 Motor Vehicle Operation Safety Technical Conditions", "GB7258-2017 Motor Vehicle Operation Safety Technical Conditions".

The tank inspection report below is from the China National Accreditation Service for Conformity Assessment (CNAS).

8 * 4 SITRAK Front Four Rear Eight 27.5 square Aluminum Alloy Q235 Carbon Steel 304 Stainless Steel Oil Tanker details

Dedicated to the research and development, production and manufacture of hazardous chemical transport vehicles, storage equipment and components. Relying on domestic and foreign series of special-purpose vehicle chassis, Isuzu Hino Nissan JAC Iveco (Yuejin) Iveco (Hongyan) Northern Heavy Duty Truck China Heavy Duty Truck Foton Shakman Dongfeng FAW Yangman CAMC Jiangling Xugong. Tank part is for different media, cargo type, concentration, density and vehicle acquisition cost, carrying capacity, corrosion margin and other requirements, tank manufacturing materials can be divided into: carbon steel, manganese steel, aluminium alloy, titanium alloy, aluminium, 304 stainless steel, 316 stainless steel, C4 steel, foam insulation and other materials.

Class 3 flammable substances (FL-type vehicles): acetone, adhesives, paints, varnishes, alcohols, spice products, petrol, diesel fuel, aviation fuel, heating oil, paraffin, resins, tar, turpentine, ethanol, benzene, butanol, isopropanol, methanol, octane, etc.

General cargo: well washing fluid, fracturing fluid, water purifying agent, water reducing agent, cleaning agent, asphalt, hydraulic oil, edible oil, wine, milk, various liquid foodstuffs, etc.

Service Hotline: +8613872882788 +8613908665755 mail：[email protected] [email protected]

PRODUCT SPECIFICATIONS

Name of vehicle	Oil tanker truck
Vehicle type	CS5320GYYZ
Chassis type	ZZ1326N466GF1K
Volume	25-35 cubic meters
Total mass	32000Kg
Quality of equipment (Kg)	11565Kg
Vehicle length	11910 ×2520×3410
Rated load mass (kg)	20305,20240
The engine	MC07H.35-60
Chassis configuration	Minor security Between to pass The content should be white Focus on aggregation OFFICE Wheelbase 1800+4575+1400, Shandeka; GS; Basic; Special vehicle; Hazardization; G5-U cab; Electric heating rearview mirror: main airbag + auxiliary simple seat; MC07H.35-60 engine; Hw19712CL gearbox +HW50 flanged force extracter; VPD75D front axle (disc) : MCY11BGS self-adjusting 7 double rear axle (drum) : speed ratio 463; Double-deck frame (8+4/280) : Front less rear air suspension (3/3/ /-) : Bosch Steering machine: road version of the air intake system; Speed limit 79km/h; Front exhaust system; EBS+ESC; High safety bar (all metal); Aluminum alloy wheels (domestic) : 12R22.5 tires (longitudinal pattern sin /18PR) : 400L Fuel tank: LDWS+FCWS(with radar) : knob PTO; Sinotruk Smart Pass B version: electromagnetic power switch; Steering wheel tire burst emergency device: optional tire pressure monitoring system: optional dangerous face 11 Product sign light: D Alibaba Manufa Hubei Shengda car box Tablet Char Sugar Shandeka crisis A516 Computer \516 XGaXu wechat ЛОС High side · tight cup white Medium pressure map
tanker configuration	Carbon steel top loading configuration: effective tank volume :25-35 cubic meters, Q235B plate, 5mm thick cylinder, 5.75mm thick head, 5mm thick bulkhead, single tank with 2 tank ports, a set of European standard system, 1 submarine valve with voice alarm device with 80/60 pump, rear ladder, manual guardrail, toolbox, rear bumper, side guardrail, according to the new standard, Other manufacturers standards, gasoline, diesel and other fuel medium tank inspection report. Aluminum alloy top configuration: effective volume of oil tank :25-35 cubic meters, 5182 aluminum alloy plate, 6 thick tank, 6 thick head, 6 thick bulkhead, single bin, tank top, European standard port, 1 intelligent submarine valve, 1 set of lower charge (discharge valve, oil and steam recovery, anti-overflow probe, anti-static coil), with 80-60 special oil pump (pump can be pumped in and out), rear ladder, Manual guardrail, toolbox, rear bumper, side guardrail are aluminum alloy. The side guardrail is made of aluminum alloy sheet, according to the new standard and other manufacturers' standards, the diesel medium tank inspection report. Optional: Zhengxing large flow fuel refueling machine, 15m thick drum and gun, multi-bin and pipeline system.
