8x4 CNHTC HOWO Sinotruck15-25CBM 304 316 PE C4 Carbon Steel Chemical Liquid Corrosives Tanker Truck factory

Product Overview

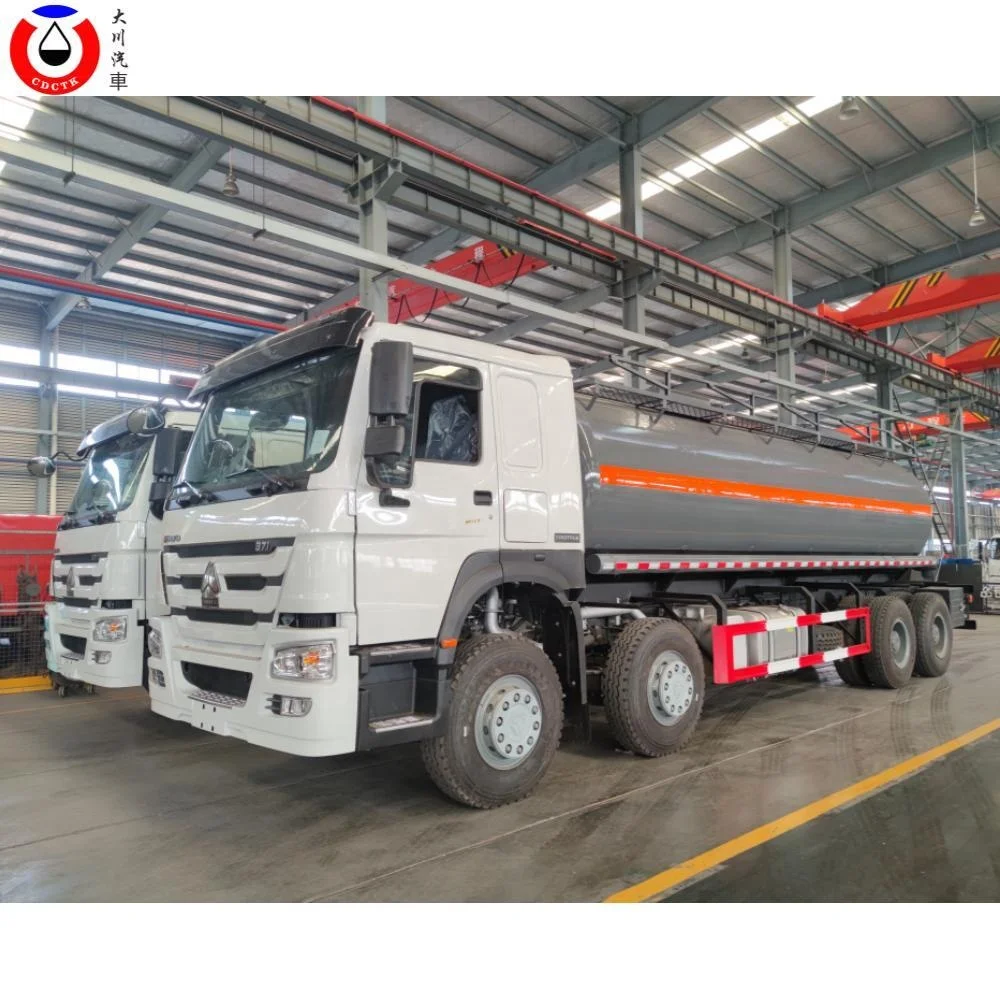

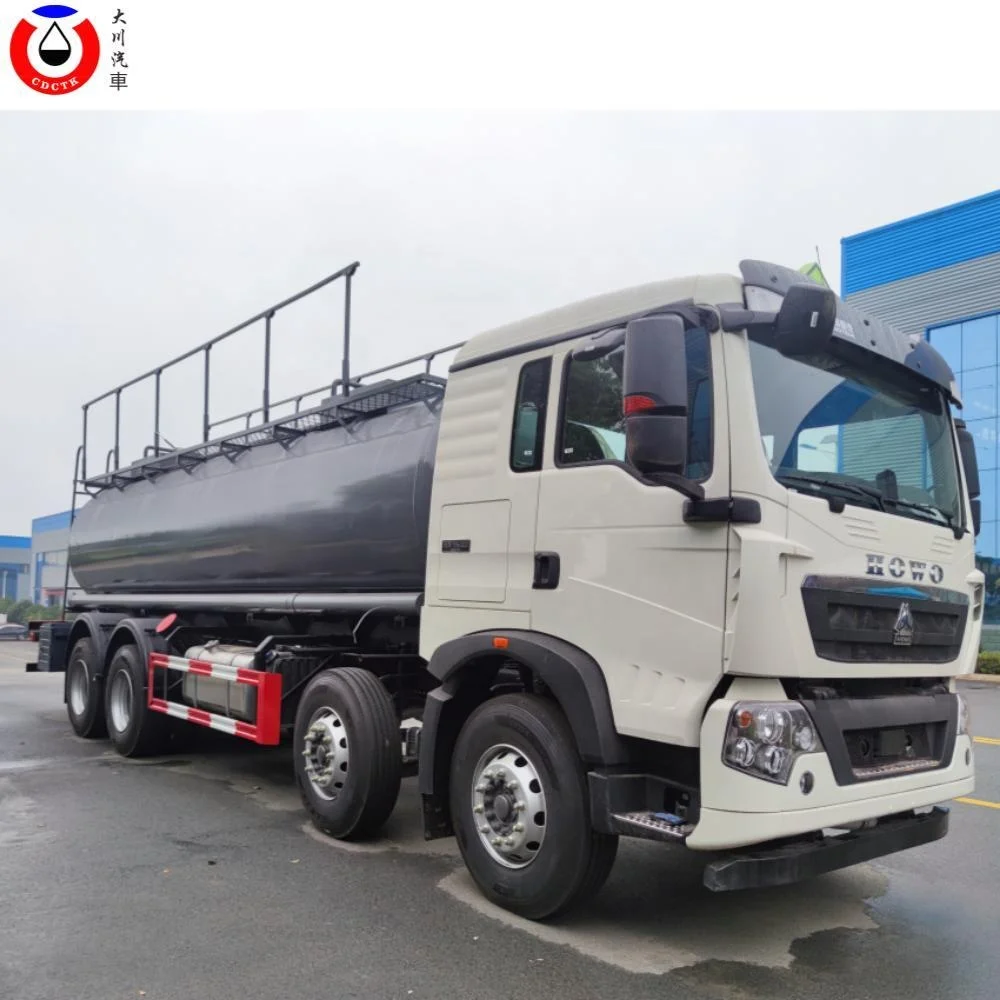

Chemical tanker truck

Our company, after years of development and growth, has emerged as a leader in the global specialty vehicle manufacturing industry. We are a leading figure in the production of vehicles for transporting flammable and explosive liquids, corrosive liquids, oxidizing liquids, chemical lined plastic tankers, and chemical liquid storage tanks, both domestically and internationally. The company adheres to the business philosophy of “professional manufacturing, creating quality products, and mutual development.” We strictly follow the national standards of the People’s Republic of China, such as “GB 18564.1-2019 Road Transport Liquid Dangerous Goods Tank Vehicles Part 1: Technical Requirements for Metal Atmospheric Tanks,” “GB 18564.1-2019 Road Transport Liquid Dangerous Goods Tank Vehicles Part 2: Technical Requirements for Non-Metal Atmospheric Tanks,” and “GB7258-2017 Motor Vehicle Operating Safety Technical Conditions” in our design and production. We also meet the requirements of “Operational Truck Safety Technical Conditions (JT/T1178.1-2018)” and are listed in the road transport vehicle standard models..

The tank inspection report below is from the China National Accreditation Service for Conformity Assessment (CNAS).

8x4 CNHTC HOWO Sinotruck15-25CBM 304 316 PE C4 Carbon Steel Chemical Liquid Corrosives Tanker Truck details

Main Business We are dedicated to the research, development, production, and manufacturing of hazardous chemical transport vehicles, storage equipment, and parts. Relying on a series of domestic and international specialty vehicle chassis, the tank body is tailored to different media, chemical properties of goods, types, concentrations, environmental temperatures, vehicle purchase costs, load capacity, and corrosion allowance requirements. The materials used for manufacturing the tank body include carbon steel, manganese steel, aluminum alloy, titanium alloy, aluminum, 304 stainless steel, 316 stainless steel, C4 steel, steel lined with plastic (polyethylene) (polypropylene) (polytetrafluoroethylene), steel lined with rubber, plastic, ceramic, fiberglass, carbon fiber, foam insulation, and more.

Class 8 Corrosive Items (AT-type vehicles): Hypochlorite solutions, hydrochloric acid, sulfuric acid, sodium hydroxide, potassium hydroxide, sodium hypochlorite, liquid alkali, ammonia water, hydrochloric acid, caustic soda, nitric acid, phosphoric acid, boric acid, aluminum chloride solution, hydrofluoric acid, formaldehyde, glacial acetic acid, acetic acid, acrylic acid, fluoroboric acid, propionic acid, hydrogen peroxide, ferric chloride solution, dichloromethane, fluorosilicic acid, trichloroacetic acid, hydriodic acid, phthalic anhydride, maleic anhydride, titanium tetrachloride, chlorosulfonic acid, phosphorus trichloride, ethylenediamine, cyclohexylamine, etc.

Class 9 Miscellaneous Dangerous Items: Wastewater from dangerous wastes listed in the “National Hazardous Waste List” (including copper waste, waste acid, waste alkali, nickel-containing waste, etc.), with dangerous goods numbers: HW18, HW21, HW22, HW23, HW27, HW33, HW34, HW35, HW46, and other related category numbers.

General Goods: Well washing fluid, fracturing fluid, water purifying agent, water reducer, cleaning agent, asphalt, hydraulic oil, edible oil, alcohol, milk, various liquid foods, etc.

Service Hotline: +8613872882788 +8613908665755 mail：[email protected] [email protected]

PRODUCT SPECIFICATIONS

Name of vehicle	Chemical tanker truck
Vehicle type	CL5320GFWZ
Chassis type	ZZ1327N466GF1K
Volume	18-25cubic meters
Total mass	32000Kg
Quality of equipment (Kg)	13305Kg
Vehicle length	11030 ×2550×3430
Rated load mass (kg)	18500,18565
The engine	MC07H.35-60 Datai 350 horsepower
Chassis configuration	HOWO TX5; Special Purpose Vehicle; TX-V Cab; Main Airbag+Secondary Easy Seat; MC07H.35-60 Engine; HW13709XSTC2 Transmission+HW70 Flange Pickup; VPD75D Front Axle(Disc); MCY11BGS Self-Adjusting Arm Dual Rear Axle(Drum); Speed Ratio 4.63; Dual Deck Frame(8+4/280); Front Less Rear Air Suspension( 3/3/-/-); 8198 steering wheel; front exhaust system; EBS+ESC; centre bumper (non-metallic); normal wheels; 12R22.5; 300L fuel tank; LDWS+FCWS (with radar); knob-type PTO; China National Heavy Truck Intelligent Pass D version; steering wheel flat tyre emergency device; tyre pressure monitoring system.

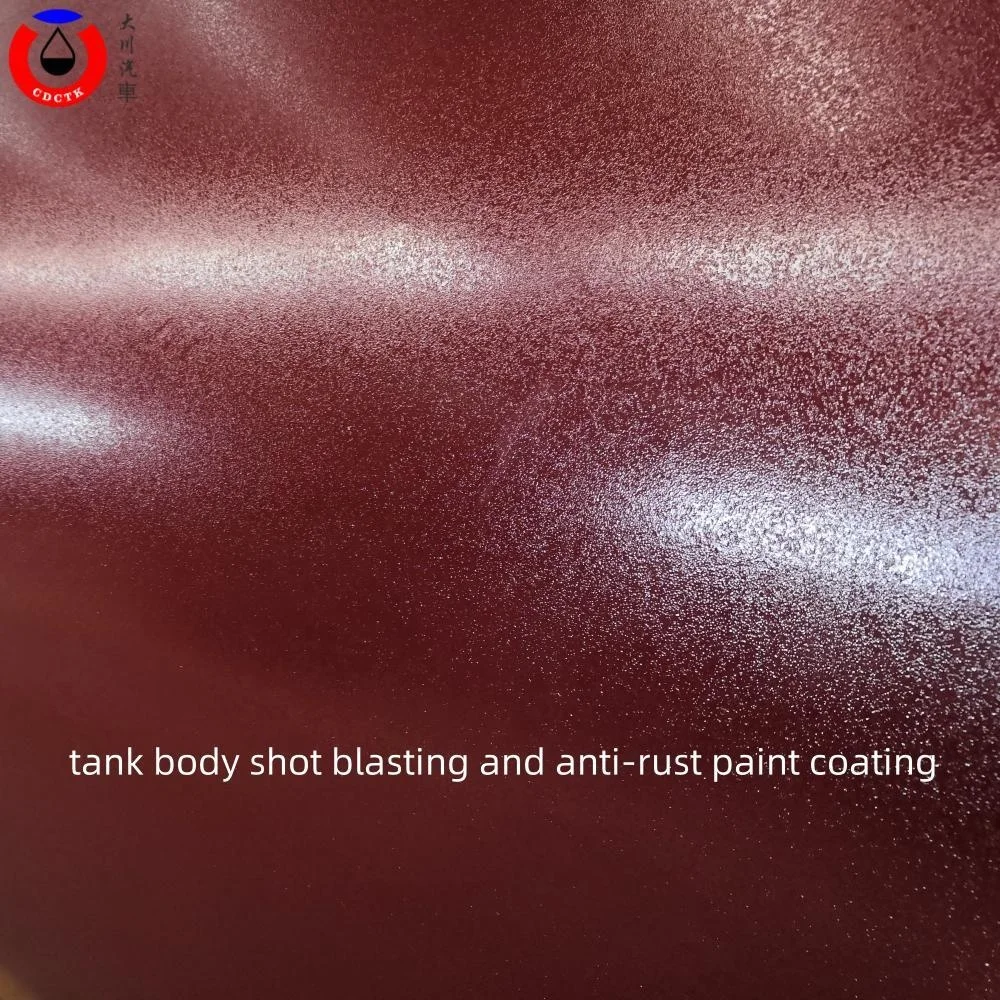

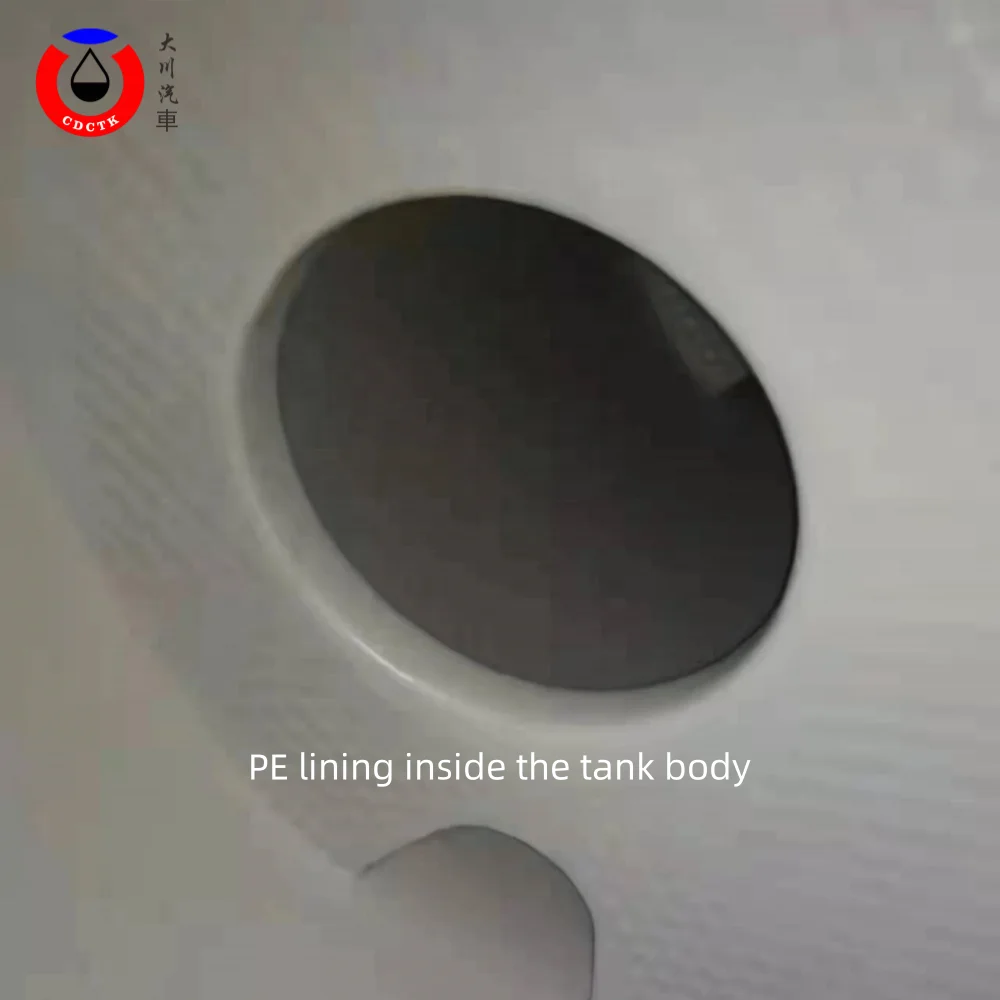

tanker configuration	Upper standard configuration (stainless steel, carbon steel): in line with GB18564.1-2019 standard; L4BH design code; round tank; SUS304, SUS316 or Q235 carbon steel material production tank; barrel, head, bulkhead thickness of 5mm, 6mm, 5mm; spinning head; through the warehouse; bulkhead * 2; tank top stainless steel or carbon steel tank mouth * 2; stainless steel Vacuum valve1; DN100 stainless steel or carbon steel tee pipe1; DN100 stainless steel or carbon steel submarine valve1; submarine valve alarm device; left and right self-flowing DN80 stainless steel or carbon steel ball valves at the rear end2; aluminium alloy movable guardrail; rear ladder, tool box, rear bumper, side protection are all steel parts; plastic export box2; tank shot blasting; tank inspection report; quality assurance certificate; Standard configuration of top loading (steel liner plastic): conform to GB18564.1-2019 standard; L4BH design code; positive round steel and plastic tank; Q235 carbon steel + PE liner plastic; polyethylene material liner plastic; liner plastic thickness of 16mm; carbon steel tank; rotary closure head; through the silo; double-layer bulkhead 2; top full plastic tank mouth 2; stainless steel vacuum valve 1; DN100 steel liner plastic tee pipe 1; DN100 stainless steel PTFE submarine valve 1; submarine valve alarm device; rear tail left and right self-flowing DN80 PTFE ball valves 2; aluminium alloy movable guardrail; rear ladder, tool box, rear bumper, side protection are all steel parts; plastic export box 2; tank shot blasting; tank inspection report; quality assurance certificate; Upper optional configuration: optional shape according to the announcement; steel-plastic tank mouth; safety valve; rupture disc; divided into multiple compartments; plastic lining thickness of 18mm-20mm; aluminium alloy accessories; liquid level meter; motor chemical pump or truck-mounted chemical pump; body and tank paint colour;
