Fuel tanker

Bei Ben Heavy Truck Exit Sprinkler 20-25 Square Sprinkler Ben Ben Stainless Steel Water Transport Truck

Bei Ben Heavy Truck Exit Sprinkler 20-25 Square Sprinkler Ben Ben Stainless Steel Water Transport Truck

Sales Executive Yanis：
Tel:+8613872882788 E-mail:[email protected]

Introduction

Introduction

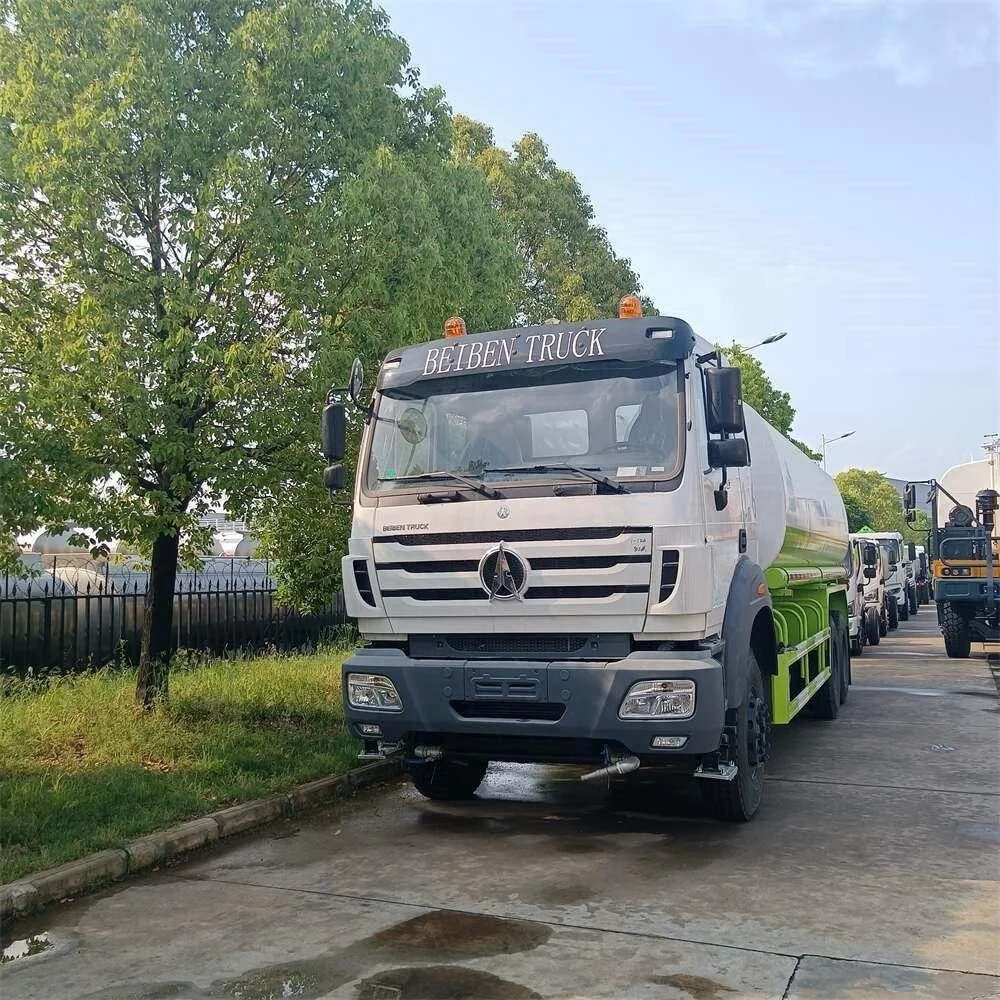

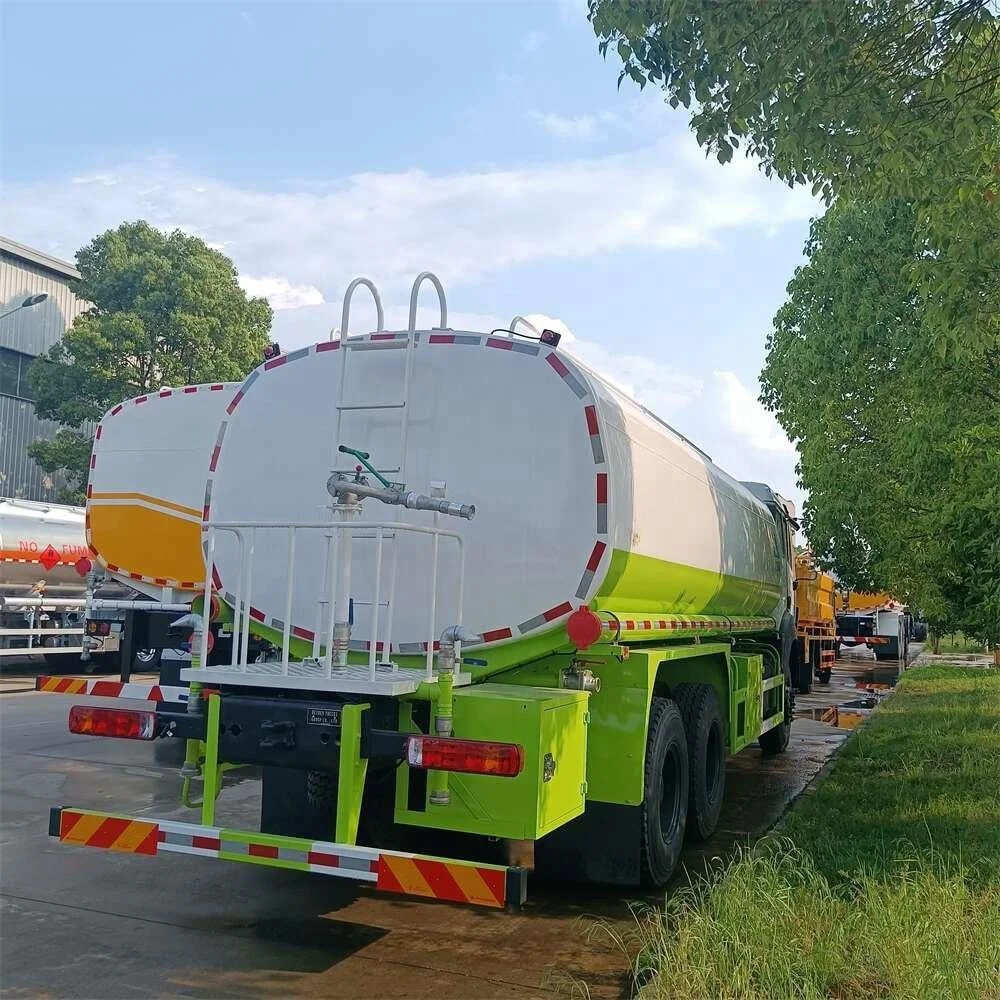

Bei Ben Heavy Truck Exit Sprinkler 20-25 Square Sprinkler Ben Ben Stainless Steel Water Transport Truck details

Product Overview

Oil tanker truck

After years of accumulation, the company has risen to the forefront in the global special-purpose vehicle manufacturers, and is the leader in the domestic and foreign flammable and explosive liquids, tanker trucks, refuelling trucks, and the company adheres to the corporate philosophy of "professional manufacturing, creating high-quality products, and common development". Strictly in accordance with the national standards of the People's Republic of China, "GB 18564.1-2019 Road Transportation of Liquid Dangerous Goods Tanker Vehicles Part 1: Metal Normally Pressurised Tanks Technical Requirements", "GB 18564.1-2019 Road Transportation of Liquid Dangerous Goods Tanker Vehicles Part 2: Non-metallic Normally Pressurised Tanks Technical Requirements", "GB7258-2017 Motor Vehicle Operational Safety Technical Conditions". Conditions", "GB7258-2017 Motor Vehicle Operation Safety Technical Conditions", "GB7258-2017 Motor Vehicle Operation Safety Technical Conditions", "GB7258-2017 Motor Vehicle Operation Safety Technical Conditions", "GB7258-2017 Motor Vehicle Operation Safety Technical Conditions", "GB7258-2017 Motor Vehicle Operation Safety Technical Conditions", "GB7258-2017 Motor Vehicle Operation Safety Technical Conditions".

The tank inspection report below is from the China National Accreditation Service for Conformity Assessment (CNAS).

Bei Ben Heavy Truck Exit Sprinkler 20-25 Square Sprinkler Ben Ben Stainless Steel Water Transport Truck manufacture

Dedicated to the research and development, production and manufacture of hazardous chemical transport vehicles, storage equipment and components. Relying on domestic and foreign series of special-purpose vehicle chassis, Isuzu Hino Nissan JAC Iveco (Yuejin) Iveco (Hongyan) Northern Heavy Duty Truck China Heavy Duty Truck Foton Shakman Dongfeng FAW Yangman CAMC Jiangling Xugong. Tank part is for different media, cargo type, concentration, density and vehicle acquisition cost, carrying capacity, corrosion margin and other requirements, tank manufacturing materials can be divided into: carbon steel, manganese steel, aluminium alloy, titanium alloy, aluminium, 304 stainless steel, 316 stainless steel, C4 steel, foam insulation and other materials.

Class 3 flammable substances (FL-type vehicles): acetone, adhesives, paints, varnishes, alcohols, spice products, petrol, diesel fuel, aviation fuel, heating oil, paraffin, resins, tar, turpentine, ethanol, benzene, butanol, isopropanol, methanol, octane, etc.

General cargo: well washing fluid, fracturing fluid, water purifying agent, water reducing agent, cleaning agent, asphalt, hydraulic oil, edible oil, wine, milk, various liquid foodstuffs, etc.

Service Hotline: +8613872882788 +8613908665755 mail：[email protected] [email protected]

product bei ben heavy truck exit sprinkler 20 25 square sprinkler ben ben stainless steel water transport truck-1

PRODUCT SPECIFICATIONS

Name of vehicle	watering cart
Vehicle type	CS5185GSSGS1
Chassis type	ND52500GJBZ
Volume	15-30 cubic meters
Total mass	31000Kg
Quality of equipment (Kg)	16000Kg
Vehicle length	11605×2555×3405
Rated load mass (kg)	16765,16700
The engine	WP10.290
Chassis configuration	North Ben heavy truck export sprinkler chassis, Weichai WP10.290 engine, 6 cylinder machine,. With EBS(Electro-pneumatic Braking system), FCWS (anti-collision warning), LDWS (Lane departure warning), TPMS (front axle single tire pressure monitoring). ESC(Anti-rollover system), ECAS (Cab airbag regulation).

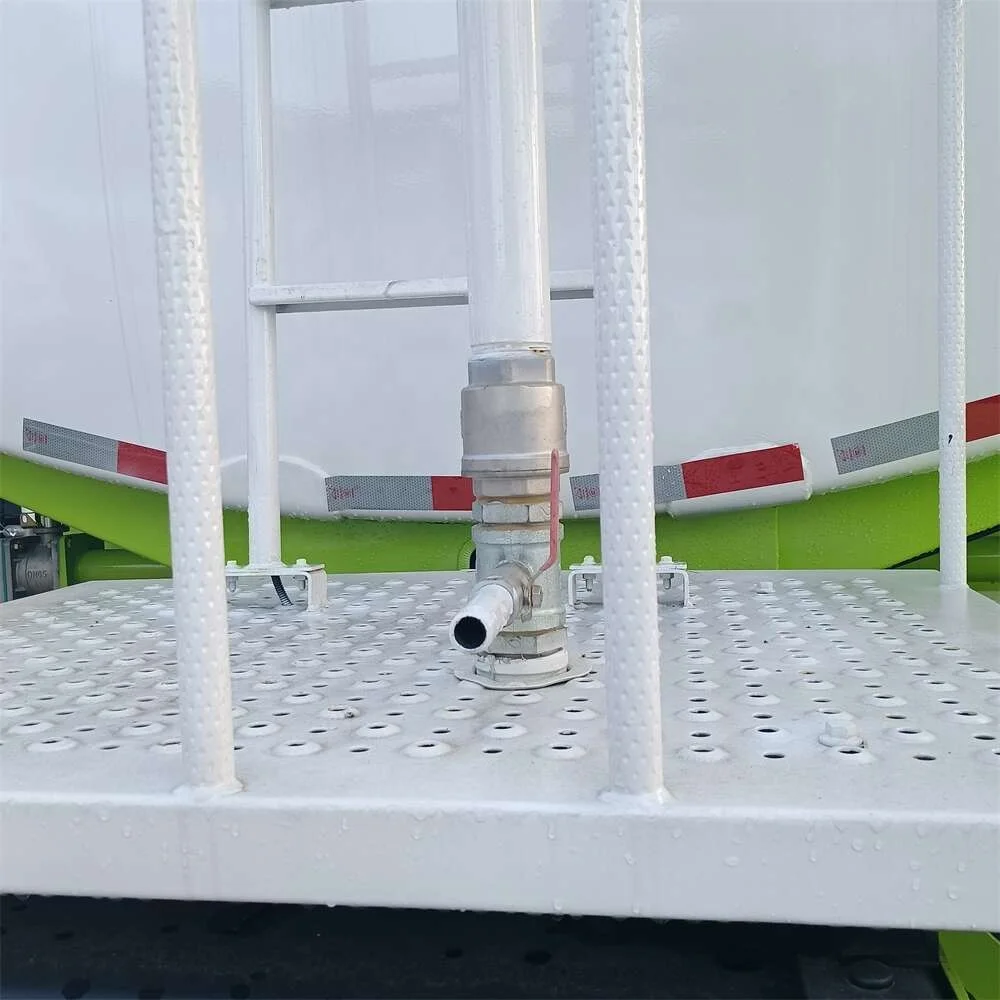

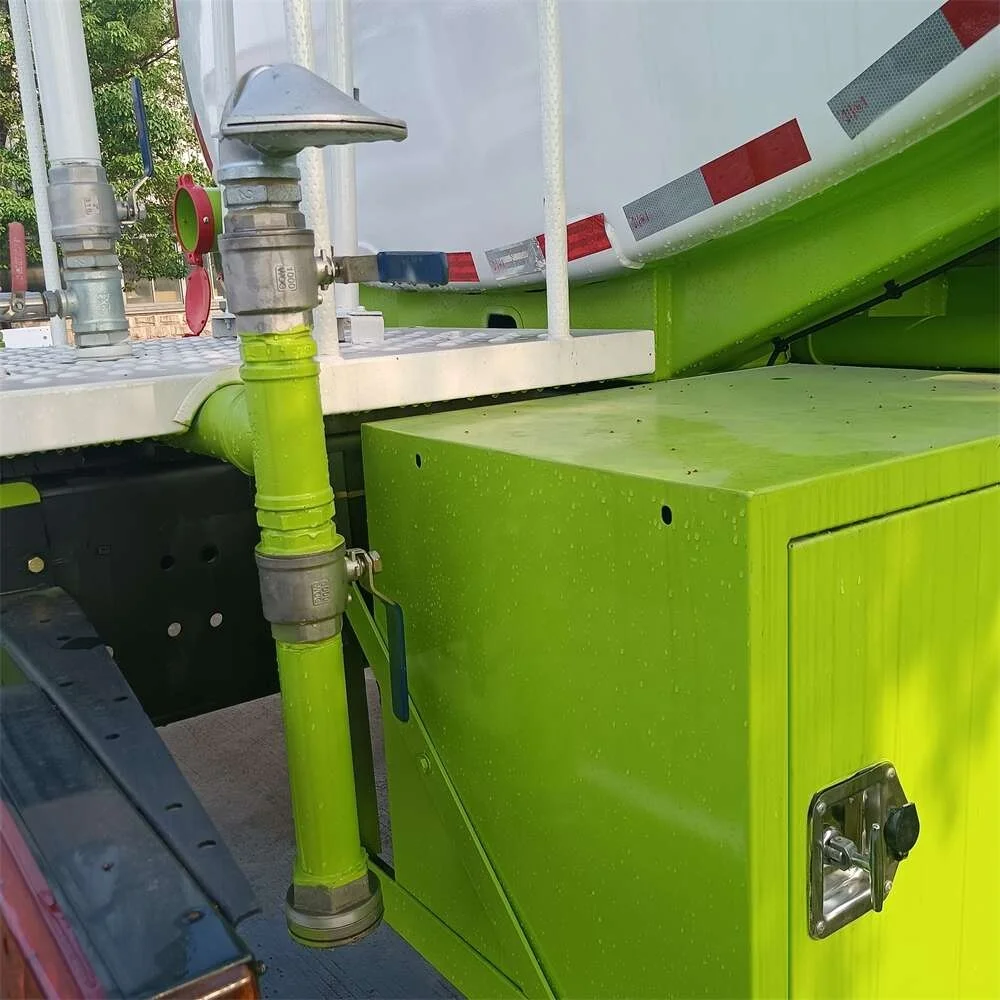

tanker configuration	The tank is made of Q235 high-quality carbon steel, the thickness of the tank is 5mm, the thickness of the head is 5mm, the thickness of the partition is 3mm, the rear platform, the ladder, galvanized steel pipe, stainless steel large-caliber ball valve, the domestic 50-50 water pump, the new high-pressure water cannon, aluminum alloy elbow, three-way, four-way, straight, flange, the rear extension, the pump outlet and the pump import, Mold one-time die casting molding, no weld, avoid leakage, standardized design, interchangeable Good sex, convenient maintenance and replacement, aluminum alloy material more lightweight, practical and beautiful. Forward, after spraying, side spraying, platform high-pressure gun (gun injection shape can be adjusted: columnar, heavy rain, moderate rain, drizzle, can be continuously adjusted, columnar range of more than 30 meters), equipped with high-power special sprinkler function pump (self-suction self-discharge), fire ball valve interface, flow valve, filter. Vertical water absorption depth ≥6 meters, flushing width ≥16 meters, after spraying width ≥8 meters, side spray width ≥10 meters, water cannon range ≥30 meters. (The above functions can be installed and added according to special needs)
