Howo Foton Dongfen 12ton Water Cannon Water Tank Fire Fighting Truck Water Truck Special Vehicle Sprinkler Truck details

Product Overview

water tanker truck

After years of accumulation, the company has risen to the forefront in the global special-purpose vehicle manufacturers, and is the leader in the domestic and foreign flammable and explosive liquids, tanker trucks, refuelling trucks, and the company adheres to the corporate philosophy of "professional manufacturing, creating high-quality products, and common development". Strictly in accordance with the national standards of the People's Republic of China, "GB 18564.1-2019 Road Transportation of Liquid Dangerous Goods Tanker Vehicles Part 1: Metal Normally Pressurised Tanks Technical Requirements", "GB 18564.1-2019 Road Transportation of Liquid Dangerous Goods Tanker Vehicles Part 2: Non-metallic Normally Pressurised Tanks Technical Requirements", "GB7258-2017 Motor Vehicle Operational Safety Technical Conditions". Conditions", "GB7258-2017 Motor Vehicle Operation Safety Technical Conditions", "GB7258-2017 Motor Vehicle Operation Safety Technical Conditions", "GB7258-2017 Motor Vehicle Operation Safety Technical Conditions", "GB7258-2017 Motor Vehicle Operation Safety Technical Conditions", "GB7258-2017 Motor Vehicle Operation Safety Technical Conditions", "GB7258-2017 Motor Vehicle Operation Safety Technical Conditions".

The tank inspection report below is from the China National Accreditation Service for Conformity Assessment (CNAS).

Dedicated to the research and development, production and manufacture of hazardous chemical transport vehicles, storage equipment and components. Relying on domestic and foreign series of special-purpose vehicle chassis, Isuzu Hino Nissan JAC Iveco (Yuejin) Iveco (Hongyan) Northern Heavy Duty Truck China Heavy Duty Truck Foton Shakman Dongfeng FAW Yangman CAMC Jiangling Xugong. Tank part is for different media, cargo type, concentration, density and vehicle acquisition cost, carrying capacity, corrosion margin and other requirements, tank manufacturing materials can be divided into: carbon steel, manganese steel, aluminium alloy, titanium alloy, aluminium, 304 stainless steel, 316 stainless steel, C4 steel, foam insulation and other materials.

Class 3 flammable substances (FL-type vehicles): acetone, adhesives, paints, varnishes, alcohols, spice products, petrol, diesel fuel, aviation fuel, heating oil, paraffin, resins, tar, turpentine, ethanol, benzene, butanol, isopropanol, methanol, octane, etc.

General cargo: well washing fluid, fracturing fluid, water purifying agent, water reducing agent, cleaning agent, asphalt, hydraulic oil, edible oil, wine, milk, various liquid foodstuffs, etc.

Service Hotline: +8613872882788 +8613908665755 mail：[email protected] [email protected]

Howo Foton Dongfen 12ton Water Cannon Water Tank Fire Fighting Truck Water Truck Special Vehicle Sprinkler Truck factory

PRODUCT SPECIFICATIONS

Name of vehicle	water tanker truck
Vehicle type	CL5120GPSD6
Chassis type	EQ1125SJ8CDC
Volume	9 cubic meters
Total mass	11995Kg
Quality of equipment (Kg)	4900Kg
Vehicle length	7350×2350×2900
Rated load mass (kg)	6900
The engine	YCY30165-60
Chassis configuration	Yuchai 165 HP engine, 5.5 ton rear axle, 245/70R19.5 vacuum tyres, air brake, with air conditioning, electric windows, central locking, ABS, 6-speed gearbox.

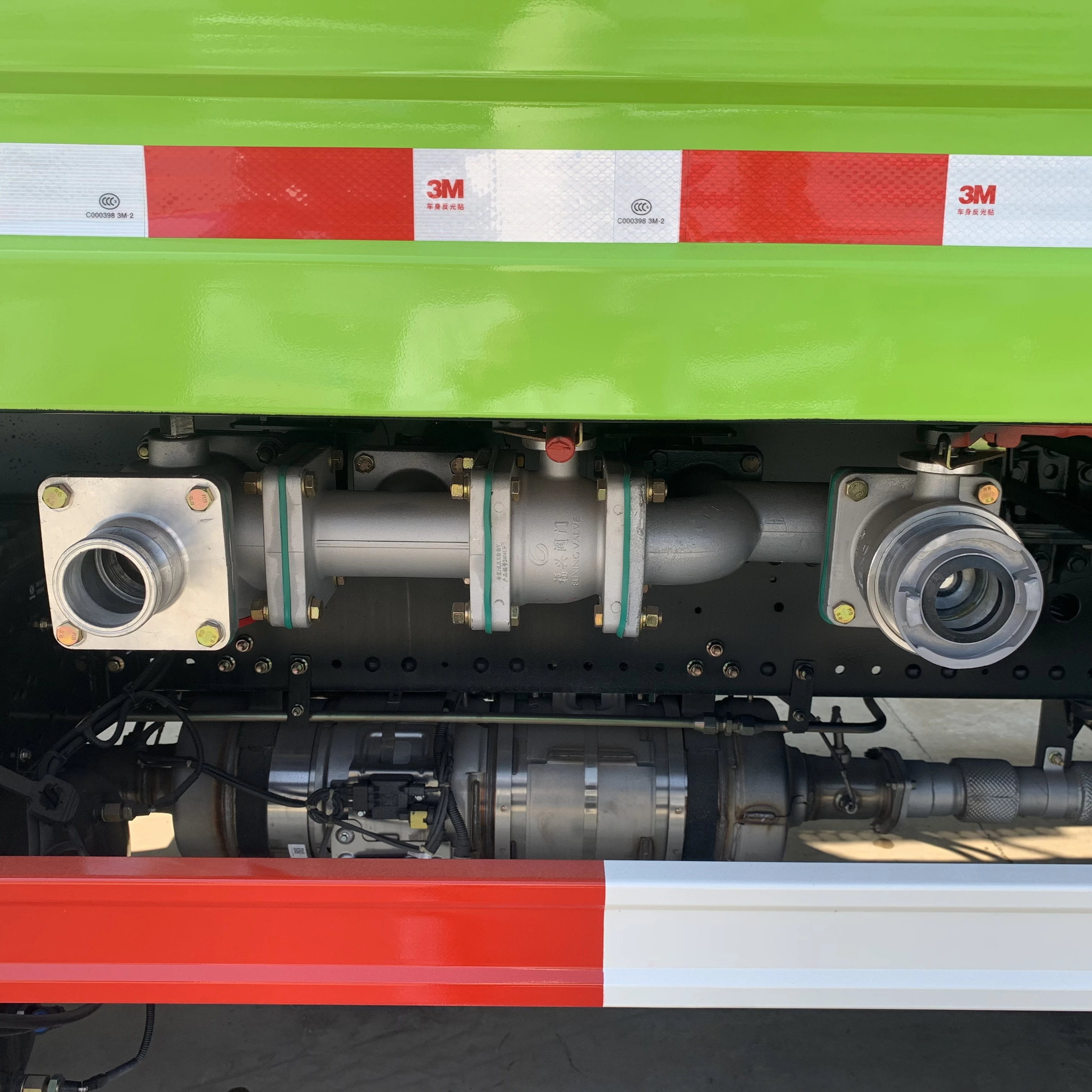

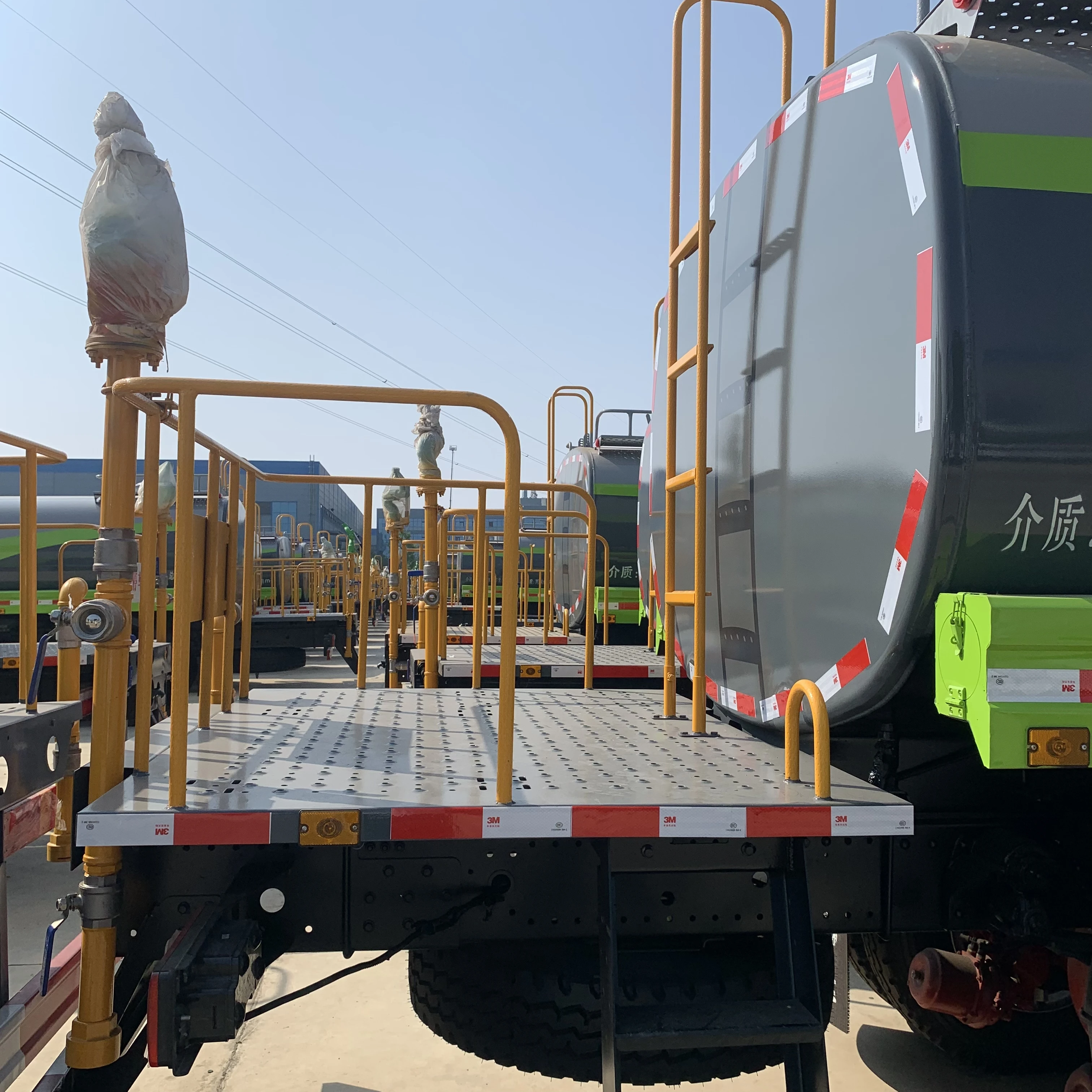

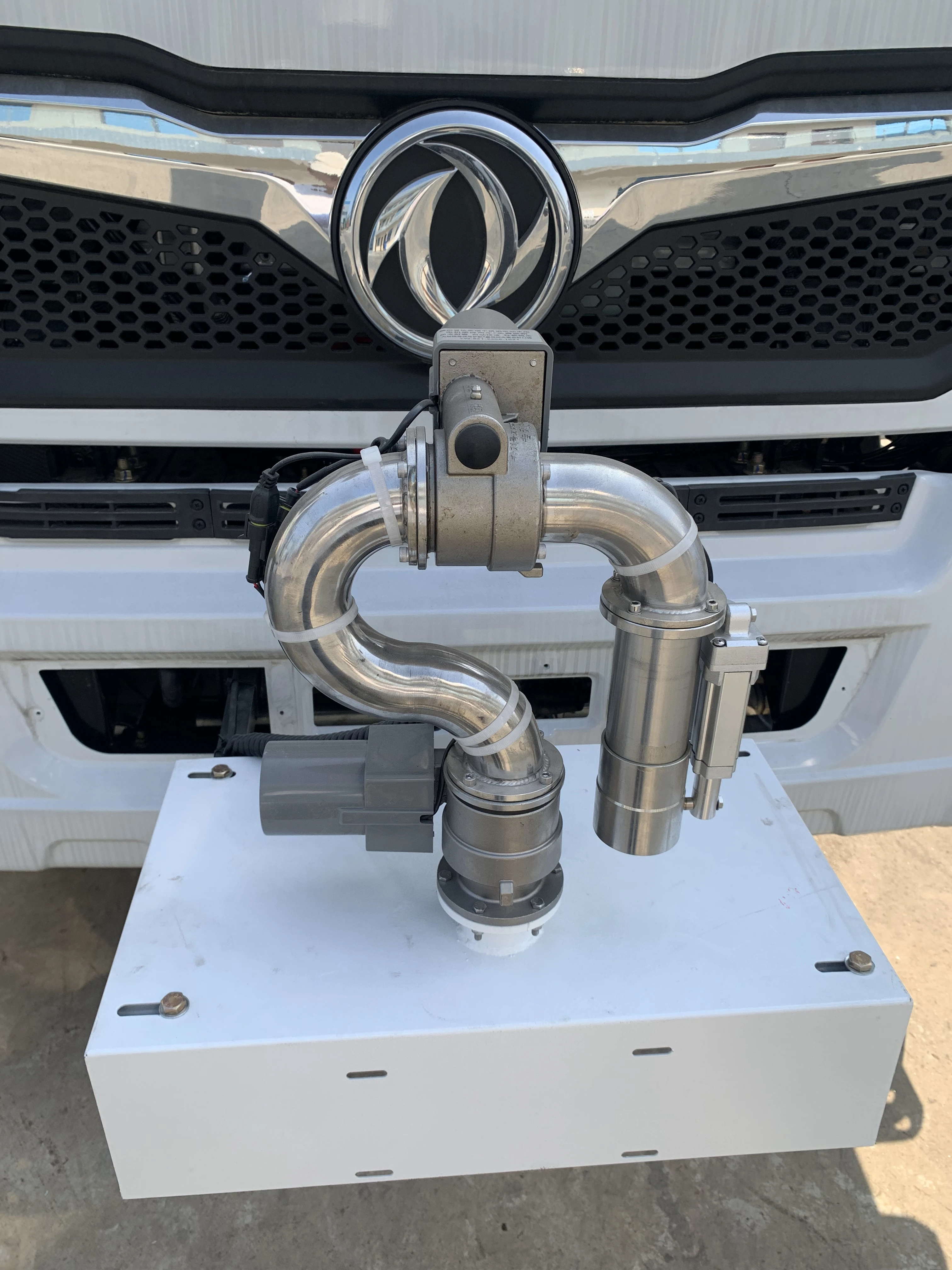

tanker configuration	Front punch (spray) after the sprinkler, with side spray, with the rear working platform, the platform is installed on the green sprinkler high-pressure gun (gun spray shape adjustable: straight, heavy rain, rain, rain, hairy rain, can be continuously adjusted, the maximum range of up to 30 metres), equipped with a high-power special sprinkler pump, with fire connector, with self-flowing valves, with self-absorption, with a strainer. Suction range ≥ 6 metres, sprinkling width ≥ 16 metres range ≥ 30 metres. Material: tank body adopts Q235, the thickness of the partition plate is 3mm, the thickness of the carbon steel tank body is 4mm, the thickness of the head is 5mm, large diameter straight through ball valve, aluminium alloy tee, thickening the main pipe (76) Cast aluminium pipe fittings: aluminium alloy elbow tee, aluminium alloy flange tee, aluminium alloy pump outlet tee, aluminium alloy pump inlet tee, mould one-time die-casting, no weld, to avoid water leakage, standardized design, interchangeability, easy to repair and replace, aluminium alloy material is lighter and more beautiful and practical, to enhance the product grade. Other accessories: aluminium alloy rear shower, stainless steel ball valve, S-type new high-pressure water cannon Perforated plate platform: thickened perforated plate, better non-slip, no water on the platform, optimised structure, stamping into. Wind sprayer: 8KW air-cooled diesel generator set, fan power: 2.2KW, pump power: 1.5KW, working pressure: 1.0-3.5MPA, spray flow: 20L/min, elevation angle: -5-60 degrees (remote control), the fog spectrum range: 50-150um, the horizontal range (static wind state): 30M, 16 stainless steel nozzles, 360-degree rotation (manual or remote control). Rotation (manual or remote control). Fan base size (reference): 1050 * 550 * 1700mm, generator size (reference): 800 * 600 * 650mm actual size in kind shall prevail. (Fog gun is an optional device) Translated with www.DeepL.com/Translator (free version)
